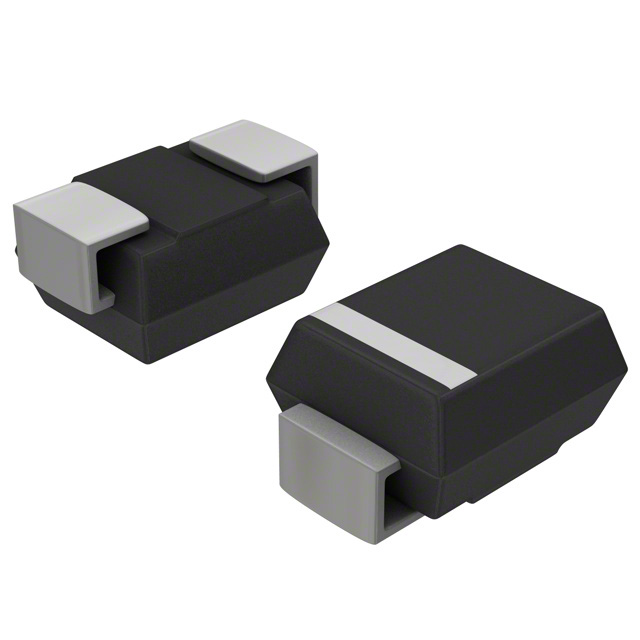

DIODE SCHOTTKY 150V 2A DO214AC
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage150 V
Average rectified current2 A
Forward voltage900 mVMax · 2 A
TypeSchottkyFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 2A |
| Current - Reverse Leakage @ Vr | 100 µA @ 150 V |
| Voltage - DC Reverse (Vr) (Max) | 150 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 2 A |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -55°C~150°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Other | |
| Capacitance @ Vr, F | - |
| Diode Type | Schottky |
| Mfr | Yangzhou Yangjie Electronic Technology Co.,Ltd |
| Product Status | Active |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
