MDDGermany

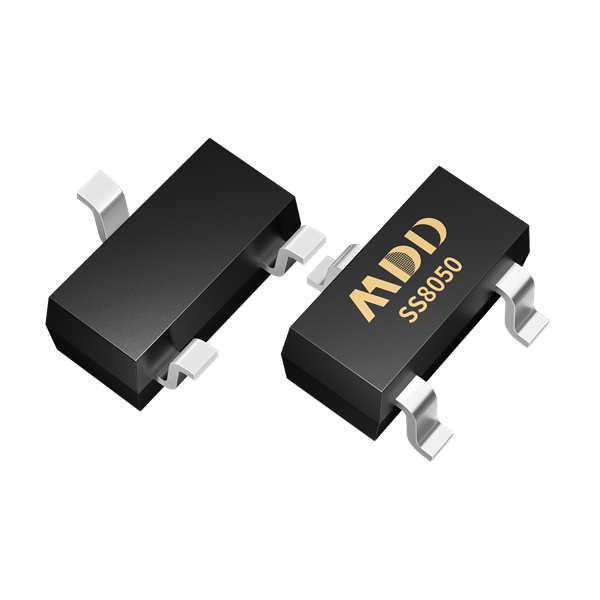

TRANS NPN 25V 1.5A SOT23
All alternatives
View full reportTechnical parameters
Key specs
TypeNPN
Collector-emitter voltage25 V
Collector current1.5 AMax
DC current gain120100mA
Power300 mWMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Current - Collector (Ic) (Max) | 1.5 A |
| Power - Max | 300 mW |
| Voltage - Collector Emitter Breakdown (Max) | 25 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 100mA, 1V |
| Frequency - Transition | 100MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| Other | |
| Mfr | MDD |
| Product Status | Active |
| Series | SOT-23 |
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 80mA, 800mA |
