onsemiUnited States

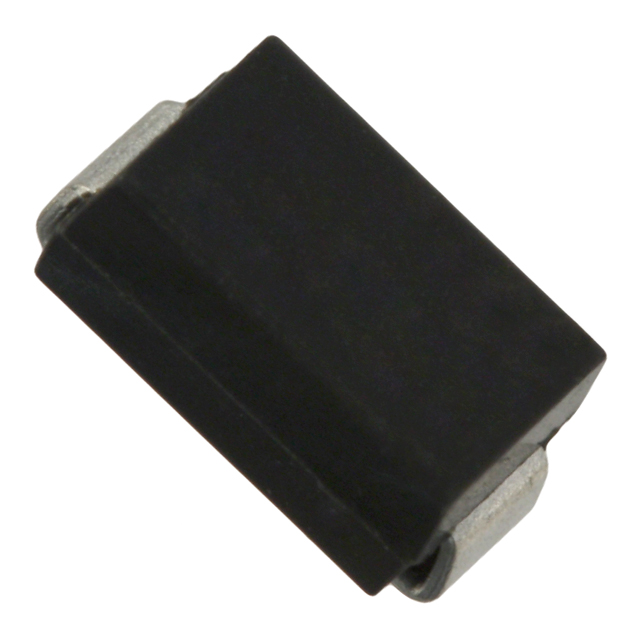

DIODE SCHOTTKY 40V 2A DO214AC
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage40 V
Average rectified current2 A
Forward voltage500 mVMax · 2 A
TypeSchottkyFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 2A |
| Current - Reverse Leakage @ Vr | 200 µA @ 40 V |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 2 A |
| Environment and package | |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | DO-214AC, SMA |
| Qualification | AEC-Q101 |
| Supplier Device Package | DO-214AC (SMA) |
| Other | |
| Base Product Number | SSA24 |
| Capacitance @ Vr, F | - |
| Mfr | onsemi |
| Product Status | Not For New Designs |
| Reverse Recovery Time (trr) | 9.84 ns |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
