TRIMMER 200KOHM 0.25W J LEAD TOP
All alternatives
View full reportTechnical parameters
Key specs
Resistance200 kΩ
Tolerance20 %
Power250 mWMax
Turns1
| Power | |
|---|---|
| Power (Watts) | 0.25W, 1/4W |
| Environment and package | |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

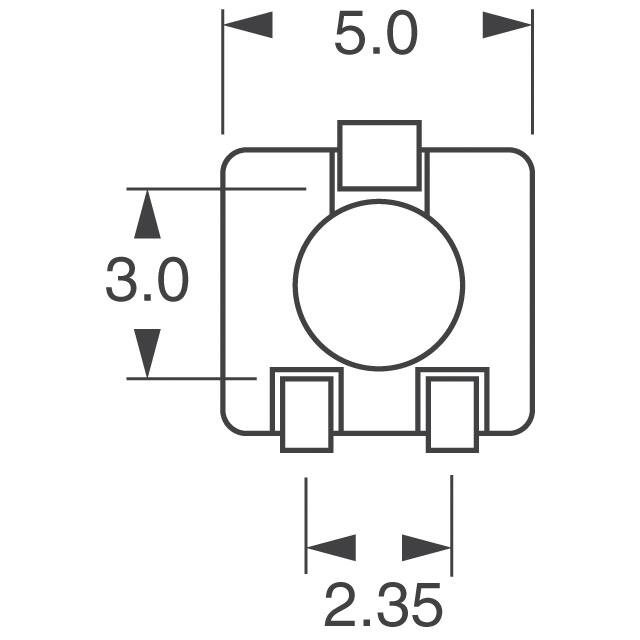

| Size / Dimension | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) |
| Temperature Coefficient | ±100ppm/°C |
| Other | |
| Adjustment Type | Top Adjustment |
| Base Product Number | ST4ETA |
| Mfr | Nidec Copal Electronics |
| Number of Turns | 1 |
| Product Status | Active |
| Resistance | 200 kOhms |
| Resistive Material | Cermet |
| Series | ST4 |
| Termination Style | J Lead |
| Tolerance | ±20% |
