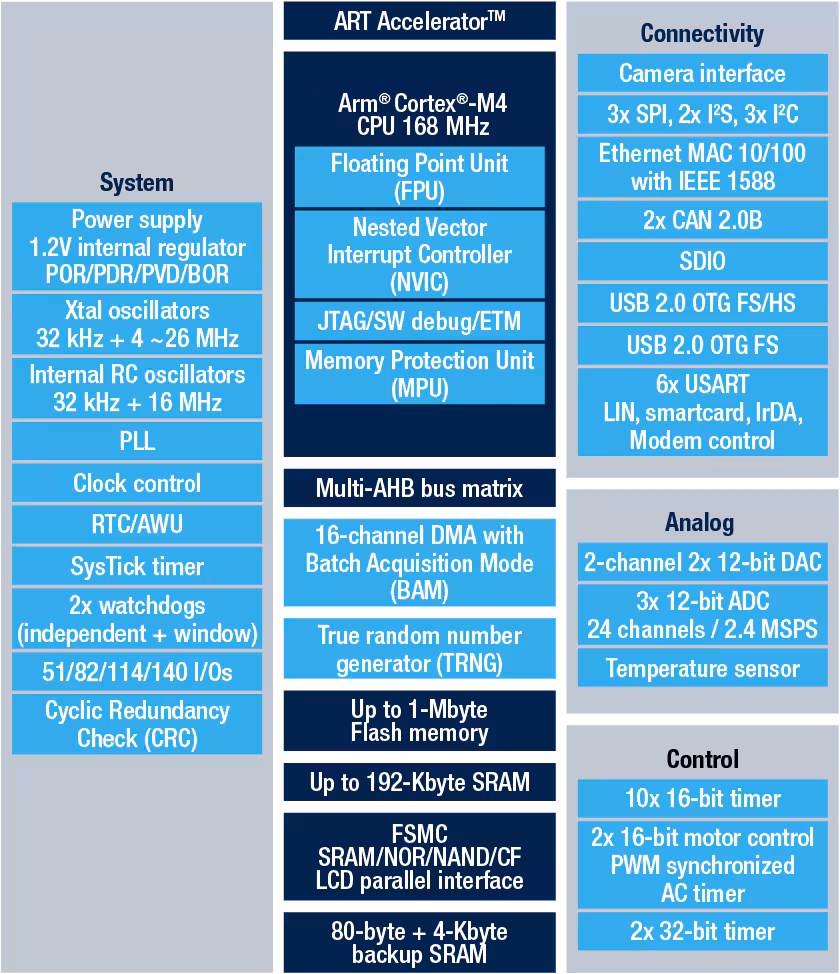

STM32F407ZG
STMicroelectronicsSwitzerland

STM32F407ZG

Microcontrollers
See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

RAM192 kB
Power
ADC通道数24
DAC通道数2
低功耗模式1
最大工作电压3.6V
最小工作电压1.8V
静态工作电流215mA
AC and DC characteristics
ADC最高分辨率12bit
DAC最高分辨率12bit
最大主核频率168MHz
Environment and package
内置温度传感器0
封装类型1QFP
尺寸规格120*20*1.6mm
最大工作温度85℃
最小工作温度-40℃
Other
AES加密0
CAN2
I2C3
I2S2
I/O数量114
PLL锁相环0
RAM192KB
ROM1024KB
SPI3
UART1
USART2
USB功能1
以太网功能1
内置ADC1
内置DAC1
内置LCD控制器0
内置缓存器0
图像处理器0
外部中断个数16
实时时钟1
引脚数量1144
电容触摸功能0
看门狗定时器 0
触摸外设0
触摸按键0
计数器数量14
边界扫描1

Documents
