SankenJapan
IC OFFLINE SWITCH FLYBACK 8DIP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power (Watts) | 36 W |
| Voltage - Breakdown | 700V |
| Voltage - Start Up | 15.3 V |
| Voltage - Supply (Vcc/Vdd) | 8.1V ~ 32V |
| AC and DC characteristics | |
| Frequency - Switching | 100kHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~115°C(TA) |
| Package | Bulk |

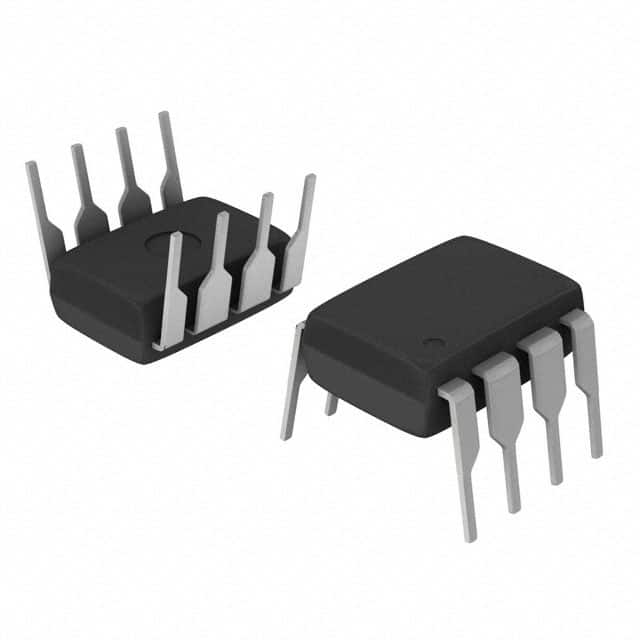

| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Other | |
| Base Product Number | STR3A161 |
| Control Features | - |
| Duty Cycle | 83% |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Internal Switch(s) | Yes |
| Mfr | Sanken |
| Output Isolation | Isolated |
| Product Status | Obsolete |
| Series | STR3A100 |
| Topology | Flyback |
