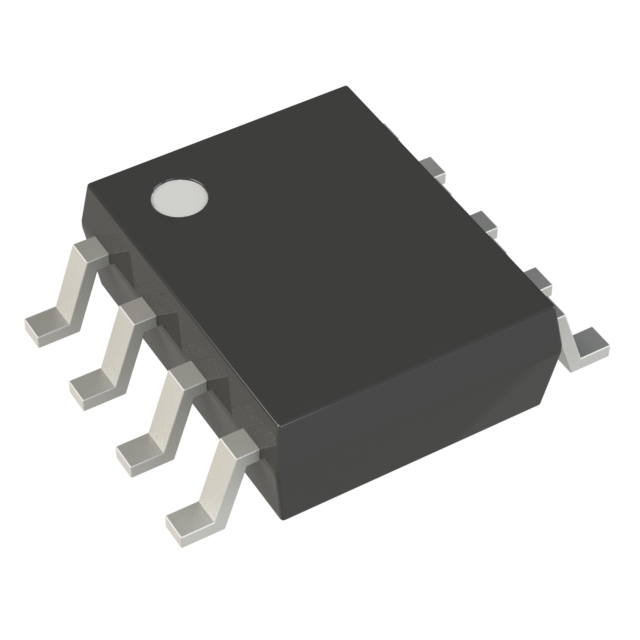

MOSFET N-CH 20V 6A 8SO
All alternatives
View full reportTechnical parameters
Key specs
ChannelN-channel
Drain-source voltage20 V
Continuous drain current6 A
On-resistance40 mΩMax · 3A
Gate threshold voltage600 mVMax · 250μA (Min)
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 6A (Tc) |
| Drain to Source Voltage (Vdss) | 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 1.95V, 4.5V |
| Power Dissipation (Max) | 2.5W (Tc) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Other | |
| Base Product Number | STS6NF20 |
| FET Feature | - |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 11.5 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 460 pF @ 15 V |
| Mfr | STMicroelectronics |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 40mOhm @ 3A, 4.5V |
| Series | STripFET™ II |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±12V |
| Vgs(th) (Max) @ Id | 600mV @ 250µA (Min) |
