Vishay SiliconixUnited States

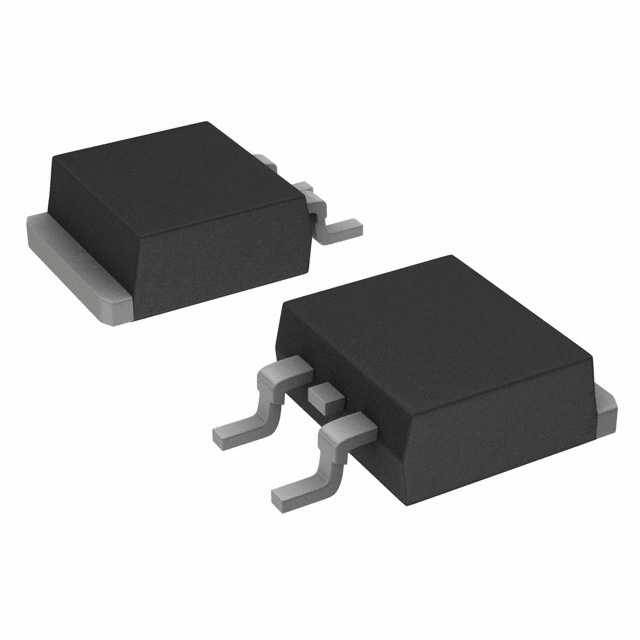

MOSFET P-CH 100V 37.1A TO252
All alternatives
View full reportTechnical parameters
Key specs
ChannelP-channel
Drain-source voltage100 V
Continuous drain current37.1 A
On-resistance43 mΩMax · 9.2A
Gate threshold voltage3 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 37.1A (Tc) |
| Drain to Source Voltage (Vdss) | 100 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Power Dissipation (Max) | 8.3W (Ta), 136W (Tc) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~175°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252 |
| Other | |
| Base Product Number | SUD50 |
| FET Feature | - |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 160 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4600 pF @ 50 V |
| Mfr | Vishay Siliconix |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 43mOhm @ 9.2A, 10V |
| Series | TrenchFET® |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±20V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
