Alpha WireUnited States
SW31

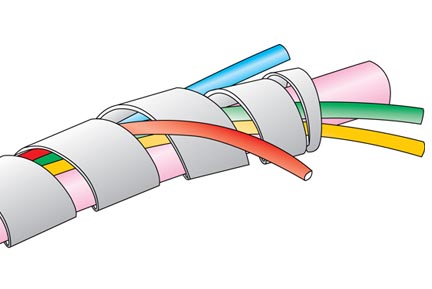

ActiveAlpha Wire’s spiral wrap tubing simplifies wire harnessing, cabling, and bundling with no installation tool needed.
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Temperature Rating | -268 to +260C |
| Other | |
| ASTM-D-3295-01, group 4 | UL CCN UZKX2 |
| Color | Natural / Black |
| Flamability | UL VW-1 |
| Inside Diameter | 0.190", Nominal |
| Material | PTFE |
| Outside Diameter | 0.250" +/- 0.010" |
| Pitch | 0.375",Nominal |
| Pitch Direction | Right Hand |
| Product | Spiral Wrap Tubing |
| Spiral Wrap Tubing | PTFE |
| Tensile Strength | 3000 PSI |
| Wall Thickness | 0.030", Nominal |
