I-PEXJapan

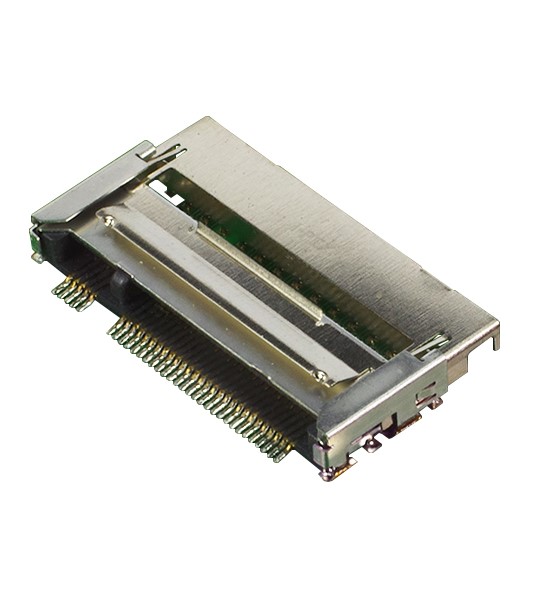

Shielded M.2 B-key card edge connector
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating | 0.5 A AC/DC (per contact) |
| Voltage Rating | 35 V AC (per contact) |
| Environment and package | |
| Height | 3.05 mm |
| Operating Temperature | -40 to 85℃ (233 to 358 K) |
| Other | |
| Applicable Standards (Reference Only) | Compliant with the PCI Express® M.2 Specification defined by PCI-SIG® |
| Available Pin Count | Signal: 67 |
| Contact Pitch | 0.5 mm |
| Contact Resistance | 55 mΩ max. |

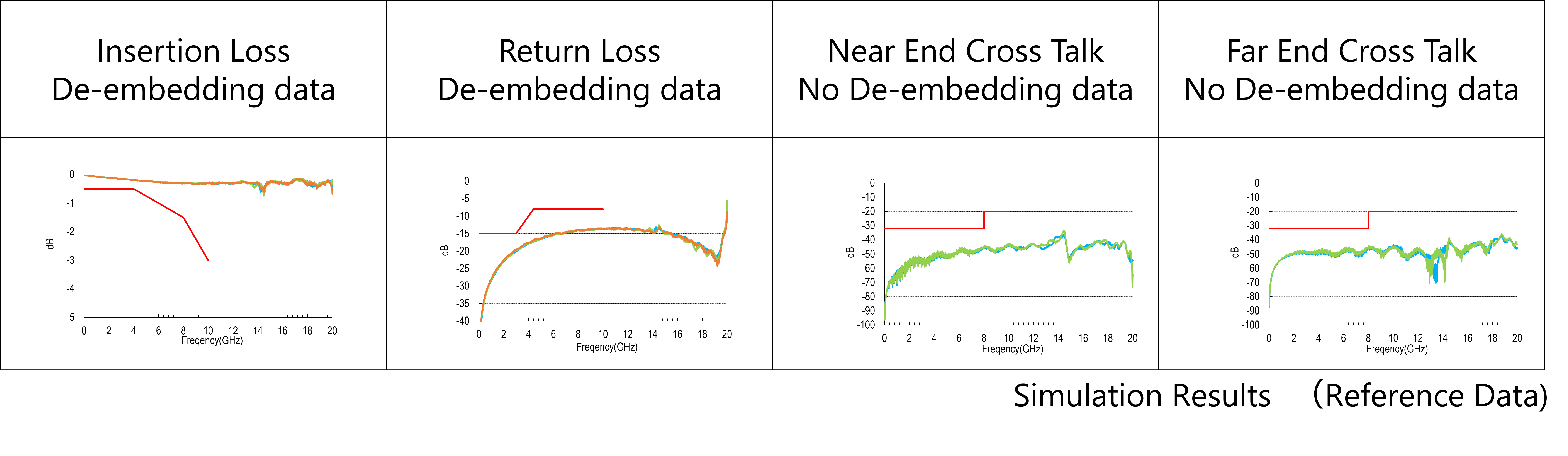

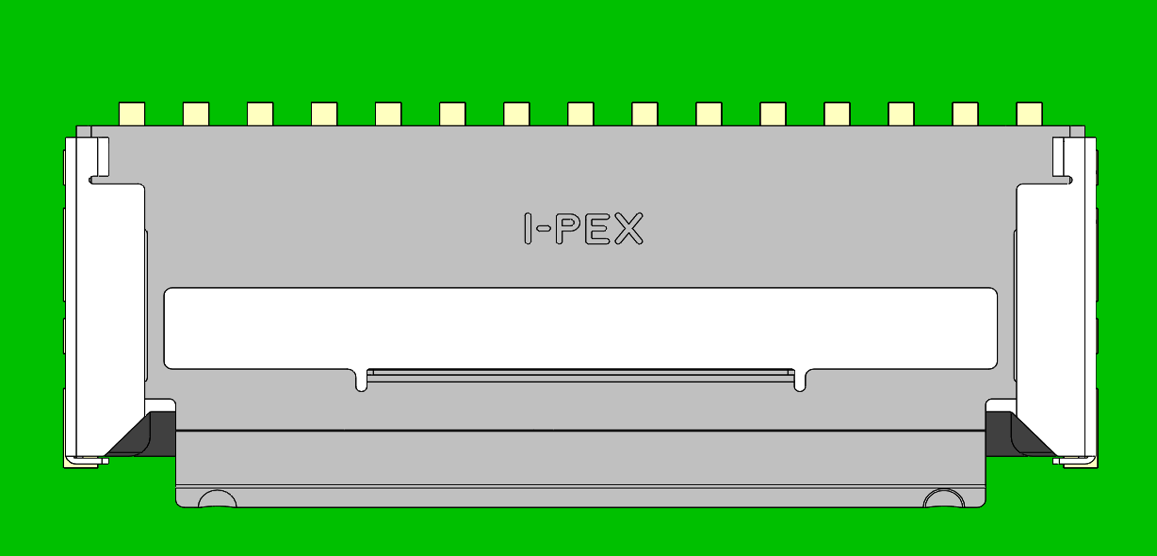

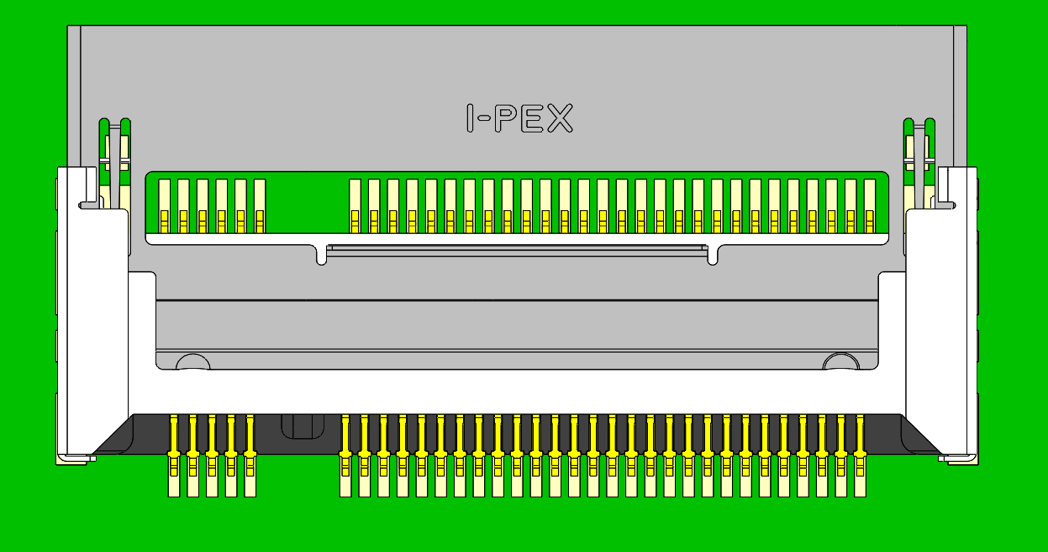

| Contacts are visible for inspection when the cover is open | Closing the cover hides the contacts and provides EMI protection |

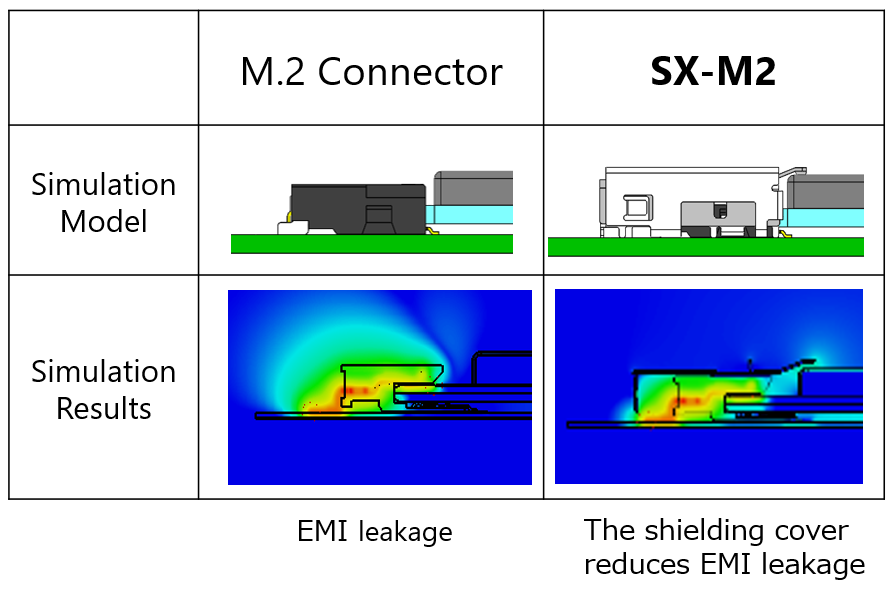

| Full EMI Shielding (ZenShield®) | Yes |
| Mating Type / Direction | Board-in-Horizontal |
| Product Type | Card Edge |
| Width | 24.1 mm |
