Microchip TechnologyUnited States

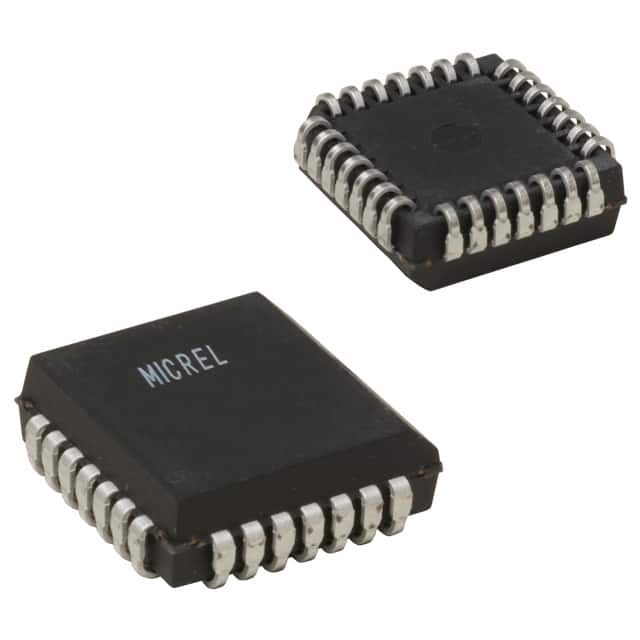

IC CLK BUFFER 2:8 160MHZ 28PLCC
All alternatives
View full reportTechnical parameters
Key specs
Max frequency160 MHzMax
Outputs2
Supply voltage4.2 ~ 5.5 V
| Power | |
|---|---|
| Voltage - Supply | ±4.2V ~ 5.5V, 4.75V ~ 5.25V |
| AC and DC characteristics | |
| Frequency - Max | 160 MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tube |
| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.48x11.48) |
| Other | |
| Base Product Number | SY100HA643 |
| Differential - Input:Output | Yes/Yes |
| Input | ECL |
| Mfr | Microchip Technology |
| Number of Circuits | 1 |
| Output | TTL |
| Product Status | Discontinued at Digi-Key |
| Ratio - Input:Output | 2:8 |
| Series | Precision Edge® |
| Type | Fanout Buffer (Distribution) |
Documents
No documents are linked to this part yet.
