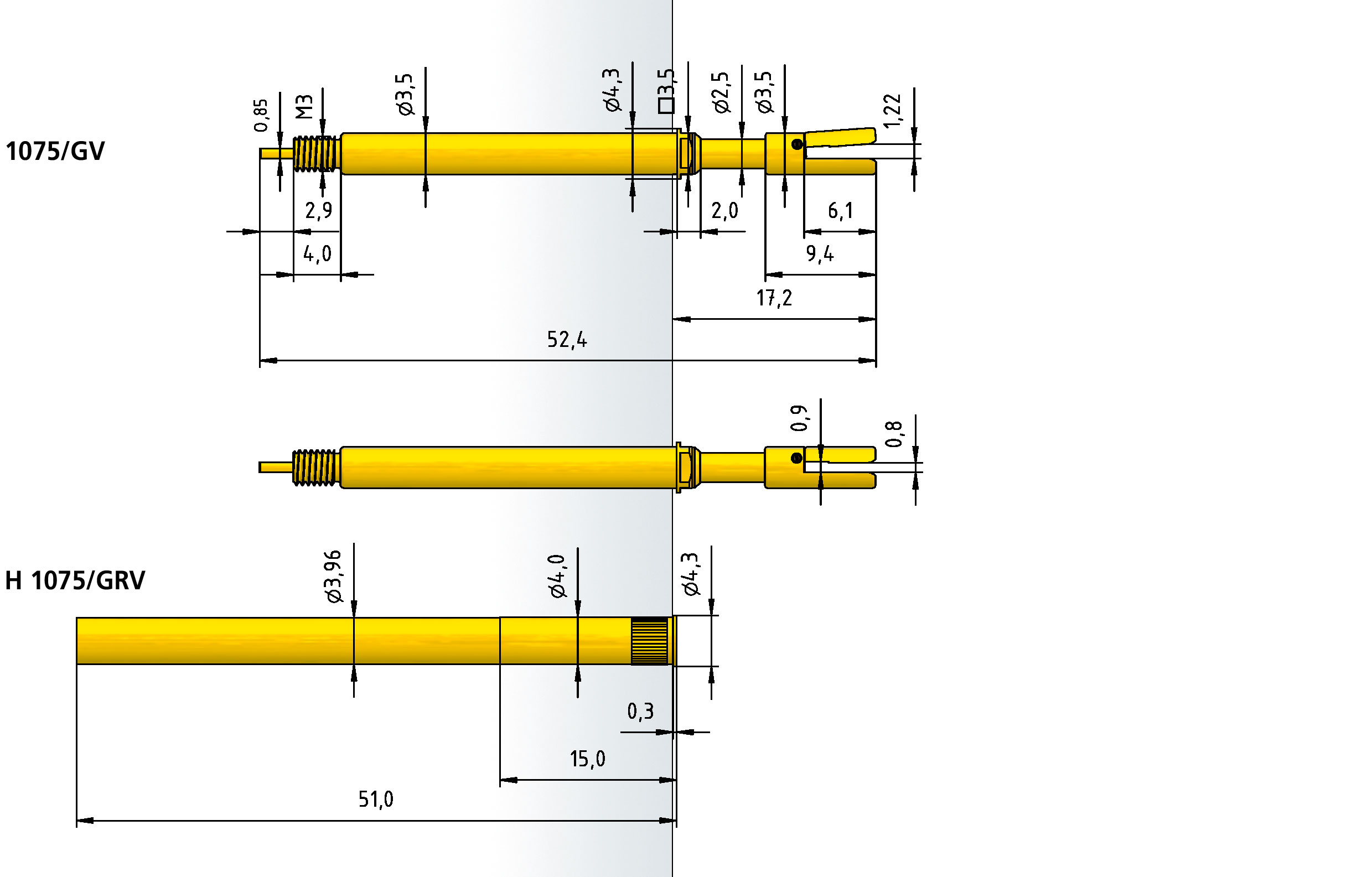

Series 1075/GV
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Continuous current | 50.0 A |
| Environment and package | |
| Temperature range | -40 °C - +250 °C |
| Other | |
| Article Designation | Max. Plate Diameter |
| Barrel | Brass, gold-plated |
| Center | 5.00 mm /197 mil |
| Full travel | 5.50 mm |
| HGW 2372 (glass filled material) | 3.99...4.00 mm |
| HP 2361.1 / EP CP 201 (trolitax) | 3.98...3.99 mm |
| Plunger | CuBe, gold-plated |
| Pre-loaded spring force | 1.00/ 1.50 N |
| Spring force at working travel | see high-temperature applications |
| Spring force at working travel (order index E) | 5.00/ 10.00 N |
| Typical continuity resistance | ≤ 5 mOhm |
| WFSB 1070/G-5.0-4.0 | 4.0 |
| Working travel | 4.40 mm |
