Series 7890
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency range | up to 9 GHz |
| Impedance | 50 Ohm |
| Other | |
| Barrel | Brass, gold-plated |
| Connector Test Probe | MMPX |

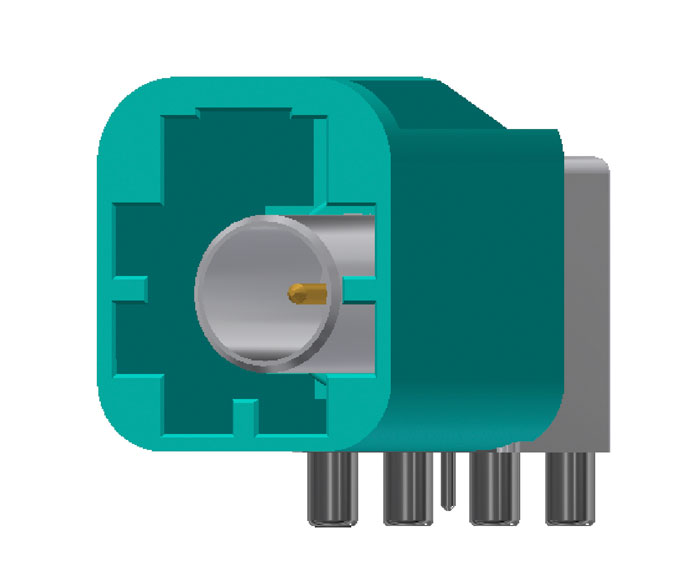

| Device under test (DUT) | Rosenberger HFM® - High-Speed FAKRA-Mini |
| Full spring force at working travel | 5.30/ 6.00 N |
| Full travel | 3.70 mm |
| Gender | male / plug |
| Length | 750 mm |
| Plunger | CuBe, gold-plated |
| Pre-loaded spring force | 0.65/ 0.95 N |
| Spring force at working travel | 1.30/ 2.00 N |
| Test technology connection | SMA |
| Type | Multiflex 86 |
| Working travel | 2.00 mm |
