Unictron Technologies CorporationTaiwan, China

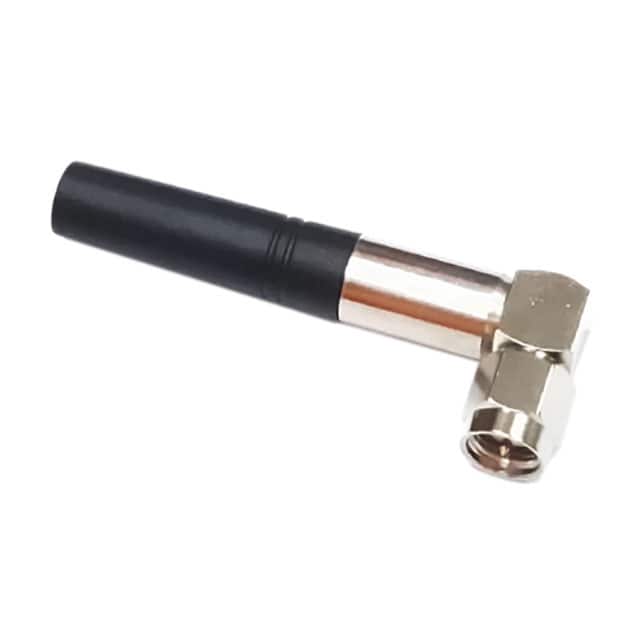

LTE TERMINAL ANTENNA
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency (Center/Band) | 761MHz, 892MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz, 824MHz, 1.71GHz, 1.85GHz, 1.92GHz, 2.3GHz ~ 824MHz, 960MHz, 1.88GHz, 1.99GHz, 2.17GHz, 2.69GHz |
| Gain | 3.85dBi, 2.59dBi, 4.17dBi, 4.31dBi, 4.31dBi, 3.28dBi |
| Environment and package | |
| Height (Max) | 1.890" (48.00mm) |
| Mounting Type | Connector Mount |
| Package | Bulk |
| Other | |
| Antenna Type | Whip, Right Angle |
| Applications | LTE |
| Base Product Number | TA-24B |
| Features | - |
| Ingress Protection | - |
| Mfr | Unictron Technologies Corporation |
| Number of Bands | 6 |
| Product Status | Active |
| Return Loss | -2.4dB, -2.4dB, -10dB, -6dB, -6dB, -5dB |
| RF Family/Standard | Cellular |
| Series | - |
| Termination | SMA Male |
| VSWR | 7.28, 7.28, 2, 3, 3, 3.5 |
