View full reportTechnical parameters
Key specs
Input voltage85 ~ 264 V
Output voltage12 V
Output current5.4 AMax
Power65 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 5.4 A |
| Power (Watts) | 65W |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Size / Dimension | 3.50" L x 2.00" W x 1.30" H (88.9mm x 50.8mm x 33.1mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus, DEMKO |

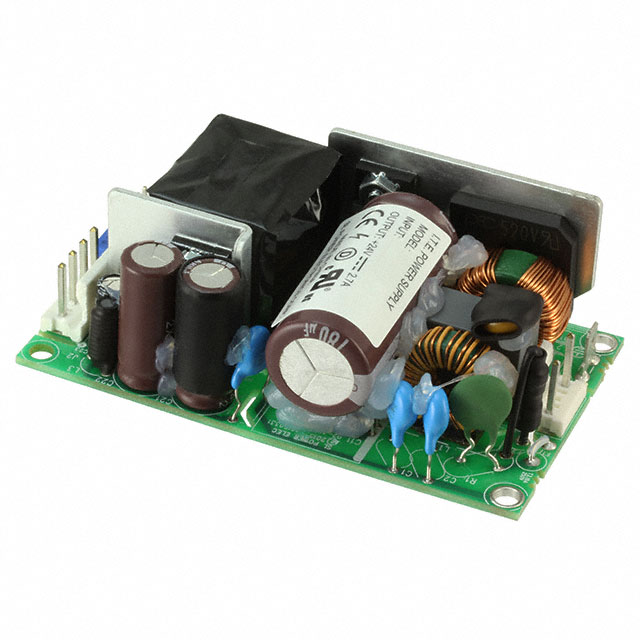

| Base Product Number | TB65S12 |
| Efficiency | 88% |
| Features | Adjustable Output, Universal Input |
| Mfr | SL POWER / Advanced Energy |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Packaging | Box |
| Part Status | Obsolete |
| Series | TB65 (65W) |
| Type | Open Frame |
