Honeywell Sensing and Productivity SolutionsUnited States

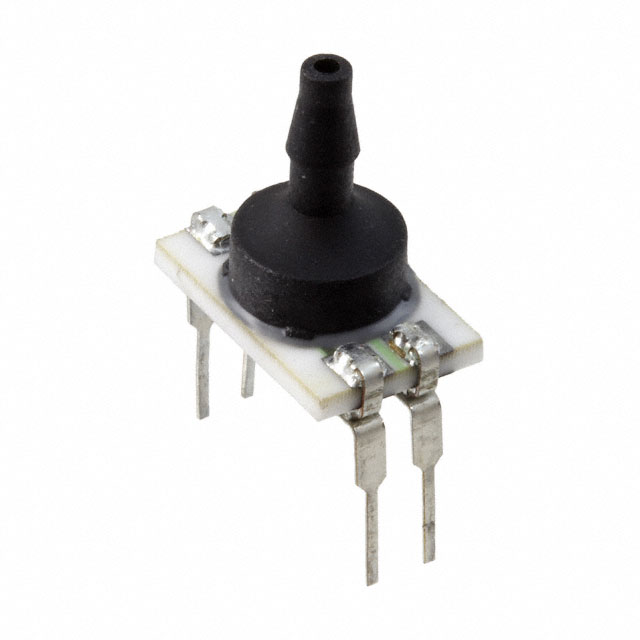

SENSOR 15PSIG 0.08" .02625V 4DIP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 1.5V ~ 12V |
| AC and DC characteristics | |
| Accuracy | ±0.15% |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 125°C |
| Package | Bulk |
| Package / Case | 4-DIP (0.453", 11.50mm), Top Port |
| Port Size | Male - 0.08" (2.54mm) Tube |
| Supplier Device Package | 4-DIP |
| Other | |
| Applications | Board Mount |
| Base Product Number | TBPDANN |
| Features | Temperature Compensated |
| Maximum Pressure | 60PSI (413.69kPa) |
| Mfr | Honeywell Sensing and Productivity Solutions |
| Operating Pressure | 15PSI (103.42kPa) |
| Output | 0 mV ~ 26.25 mV (5V) |
| Output Type | Wheatstone Bridge |
| Port Style | Barbed |
| Pressure Type | Vented Gauge |
| Product Status | Obsolete |
| Series | TBP |
| Termination Style | PC Pin |
