View full reportTechnical parameters
| Power | |
|---|---|
| 最大工作电压 | 18V |
| 最小工作电压 | 3V |
| AC and DC characteristics | |
| td-传输延迟时间 | 320ns |
| 最大工作频率 | 8.5MHZ |
| Environment and package | |

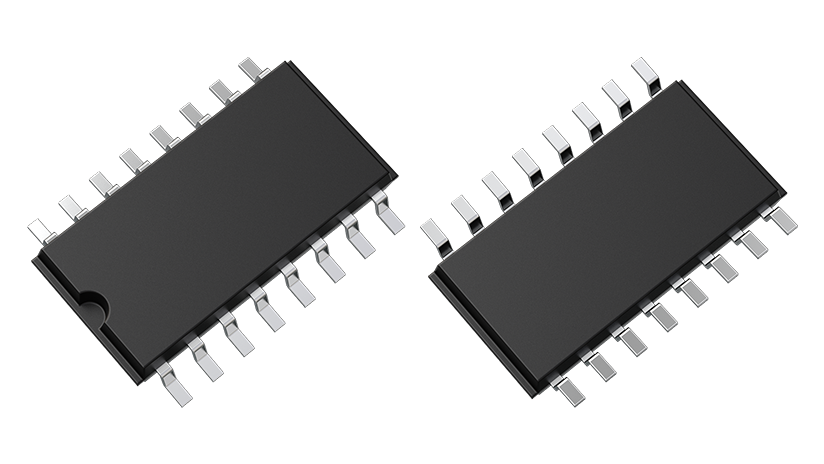

| 封装类型1 | SOIC |
| 封装类型2 | SOIC |
| 尺寸规格1 | 10.3*5.3*1.9mm |
| 尺寸规格2 | 9.9*3.9*1.75mm |
| Other | |
| 位数 | 8bit |
| 引脚数量1 | 16 |
| 引脚数量2 | 16 |
Documents
DatasheetDatasheet · 233.2 KB · 2026-09-22Catalog & SelectionCatalog & Selection · 8.7 MB · 2026-09-22Application NoteApplication Note · 1.6 MB · 2026-09-22Application NoteApplication Note · 1.4 MB · 2026-09-22Application NoteApplication Note · 1.2 MB · 2026-09-22Application NoteApplication Note · 759.5 KB · 2026-09-22Catalog & SelectionCatalog & Selection · 702.2 KB · 2026-09-22Application NoteApplication Note · 417.1 KB · 2026-09-22
