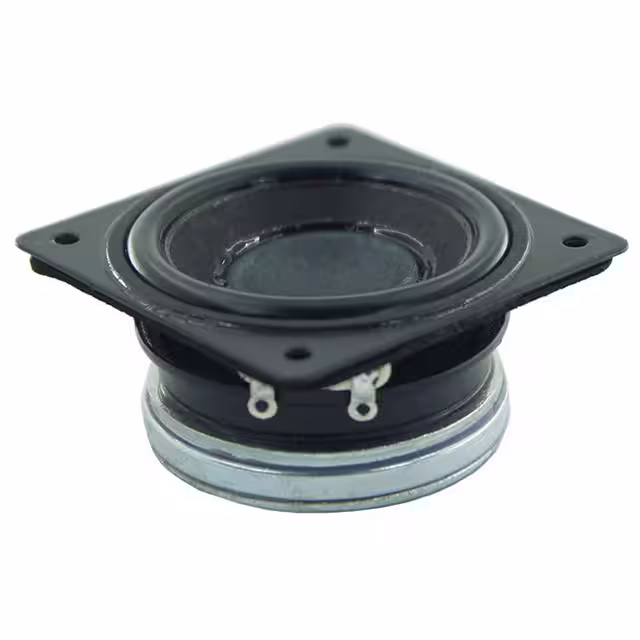

Peerless by TymphanyUnited States
SPEAKER 4OHM 5W TOP PORT 86.3DB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Rated | 5 W |
| AC and DC characteristics | |
| Frequency Range | 200 Hz ~ 20 kHz |
| Frequency - Self Resonant | 203.04Hz |
| Impedance | 4 Ohms |
| Environment and package | |
| Height - Seated (Max) | 0.957" (24.30mm) |
| Package | Bulk |
| Size / Dimension | 1.594" L x 1.594" W (40.50mm x 40.50mm) |
| Other | |
| Efficiency - dBA | 86.30 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Half Space Sensitivity |
| Ingress Protection | - |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Mfr | Peerless by Tymphany |
| Port Location | Top |
| Product Status | Obsolete |
| Ratings | - |
| Series | TC |
| Shape | Round, Square Frame |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Full Range |
