View full reportTechnical parameters
| Power | |
|---|---|
| 最大工作电压 | 5.5V |
| 最小工作电压 | 2V |
| AC and DC characteristics | |
| td-传输延迟时间 | 11.2ns |
| 传播延迟时间 | 11.2ns |
| 最大工作频率 | 80MHz |
| Environment and package | |

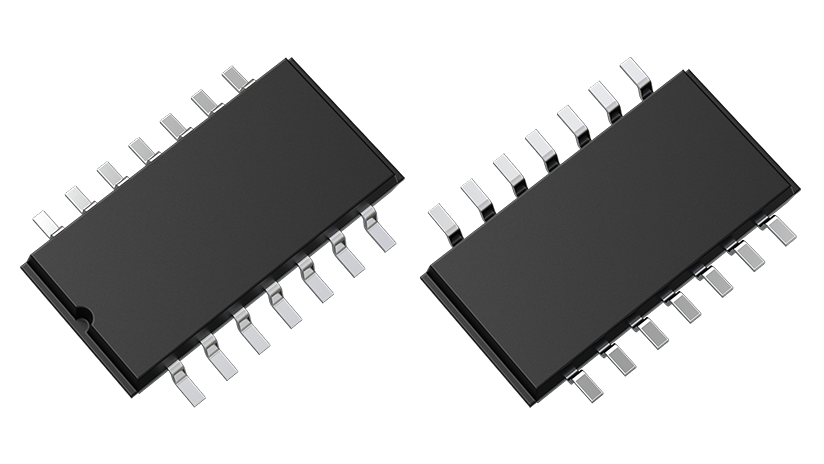

| 封装类型1 | SOIC |
| 封装类型2 | SOIC |
| 封装类型3 | SOIC |
| 封装类型4 | SSOP |
| 尺寸规格1 | 10.3*5.3*1.9mm |
| 尺寸规格2 | 8.65*3.9*1.75mm |
| 尺寸规格3 | 9.9*3.9*1.75mm |
| 尺寸规格4 | 5*4.4*1.6mm |
| Other | |
| 位数 | 8bit |
| 引脚数量1 | 14 |
| 引脚数量2 | 14 |
| 引脚数量3 | 16 |
| 引脚数量4 | 14 |
Documents
DatasheetDatasheet · 218.2 KB · 2026-09-22Catalog & SelectionCatalog & Selection · 8.7 MB · 2026-09-22Application NoteApplication Note · 1.6 MB · 2026-09-22Application NoteApplication Note · 1.3 MB · 2026-09-22Application NoteApplication Note · 1.2 MB · 2026-09-22Application NoteApplication Note · 759.5 KB · 2026-09-22Catalog & SelectionCatalog & Selection · 702.2 KB · 2026-09-22Application NoteApplication Note · 417.1 KB · 2026-09-22
