View full reportTechnical parameters
| Power | |
|---|---|
| 最大工作电压 | 5.5V |
| 最大输出电流 | 8mA |
| 最小工作电压 | 2V |
| AC and DC characteristics | |
| td-传输延迟时间 | 10.5ns |
| 传播延迟时间 | 10.5ns |
| 传输延迟时间 | 10.5ns |

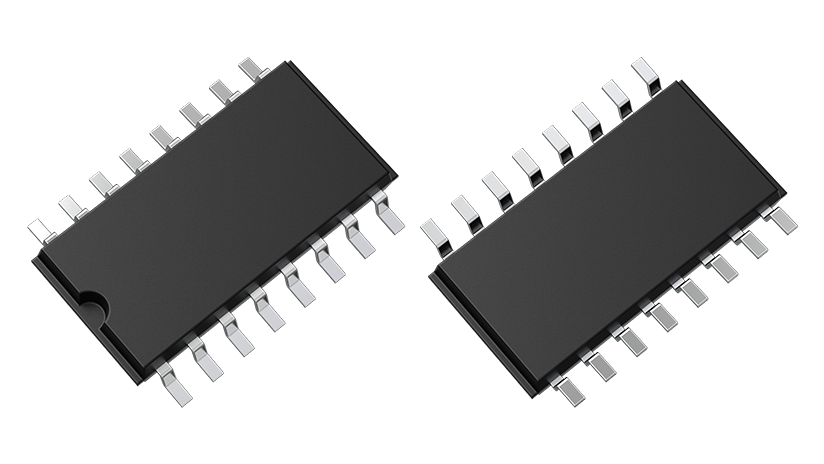

| Environment and package | |
| 封装类型1 | SOIC |
| 封装类型2 | SOIC |
| 封装类型3 | TSSOP |
| 封装类型4 | SOIC |
| 尺寸规格1 | 5*4.4*1.6mm |
| 尺寸规格2 | 9.9*3.9*1.75mm |
| 尺寸规格3 | 5*4.4*1.2mm |
| 尺寸规格4 | 10.3*5.3*1.9mm |
| Other | |
| 引脚数量1 | 16 |
| 引脚数量2 | 16 |
| 引脚数量3 | 16 |
| 引脚数量4 | 16 |
