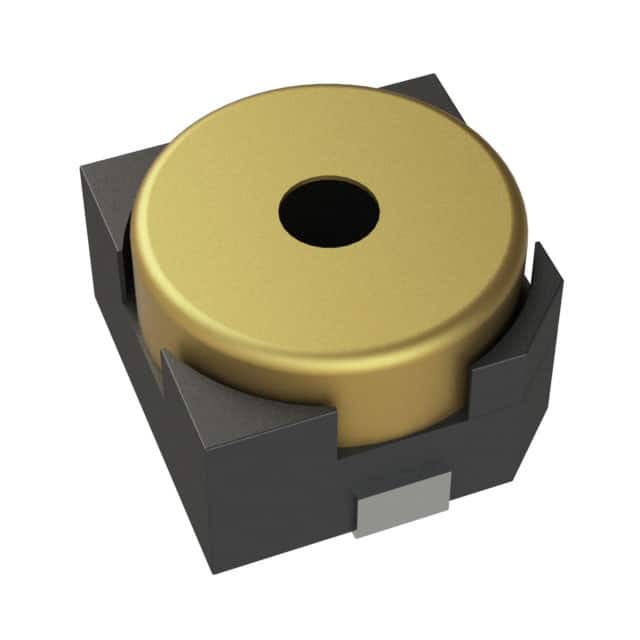

BUZZER ELECTRO 3V 3.2X3.2MM SMD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Supply | 120mA |
| Voltage Range | 2 ~ 4V |
| Voltage - Rated | 3 V |
| AC and DC characteristics | |
| Frequency | 4kHz |
| Environment and package | |
| Height - Seated (Max) | 0.091" (2.30mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -20°C~70°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Size / Dimension | 0.126" L x 0.126" W (3.20mm x 3.20mm) |
| Other | |
| Approval Agency | - |
| Driver Circuitry | Transducer, Externally Driven |
| Duration | - |
| Ingress Protection | - |
| Input Type | DC |
| Mfr | DB Unlimited |
| Operating Mode | - |
| Port Location | Top |
| Product Status | Active |
| Ratings | - |
| Series | - |
| Sound Pressure Level (SPL) | 64dB @ 3V, 10cm |
| Technology | Electromechanical |
| Termination | Solder Pads |
