NXP USA Inc.Netherlands

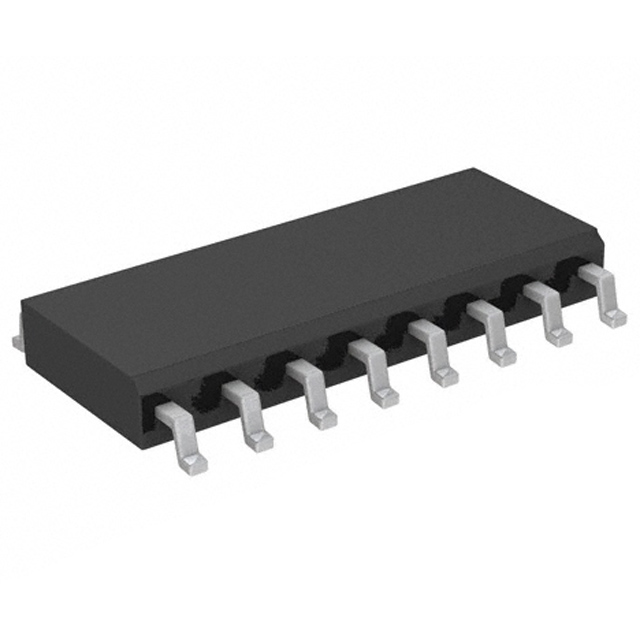

IC OFFLINE SWITCH FLYBACK 16SO
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power (Watts) | 250 W |
| Voltage - Breakdown | 650V |
| Voltage - Start Up | 22.3 V |
| Voltage - Supply (Vcc/Vdd) | 13.4V ~ 38V |
| AC and DC characteristics | |
| Frequency - Switching | 119kHz ~ 159kHz, 110kHz ~ 150kHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 155°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SO |
| Other | |
| Base Product Number | TEA1755 |
| Control Features | - |
| Duty Cycle | - |
| Fault Protection | Current Limiting, Over Power, Over Temperature, Over Voltage |
| Internal Switch(s) | No |
| Mfr | NXP USA Inc. |
| Output Isolation | Isolated |
| Product Status | Active |
| Series | GreenChip™ II |
| Topology | Flyback |
