STMicroelectronicsSwitzerland

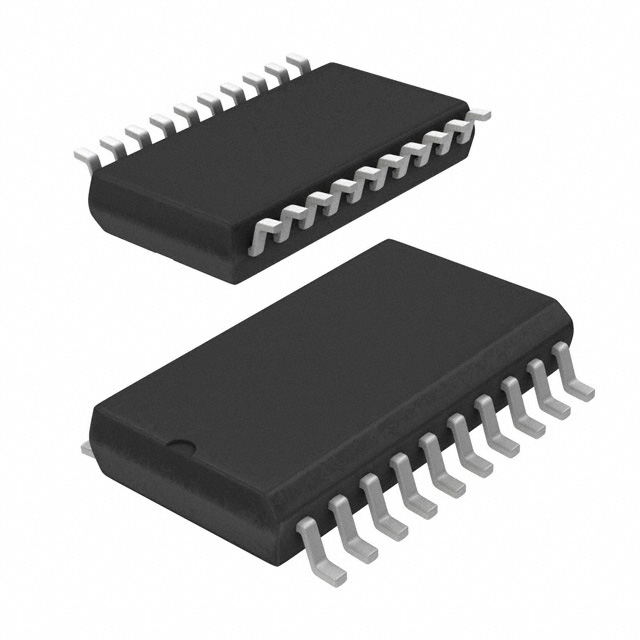

IC MTR DRV BIPLR 4.75-5.25V 20SO
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output | 1.5A |
| Voltage - Load | 10V ~ 45V |
| Voltage - Supply | 4.75V ~ 5.25V |
| AC and DC characteristics | |
| Step Resolution | 1, 1/2 |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SO |
| Other | |
| Applications | General Purpose |
| Base Product Number | TEA3718 |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | Parallel |
| Mfr | STMicroelectronics |
| Motor Type - AC, DC | - |
| Motor Type - Stepper | Bipolar |
| Output Configuration | Half Bridge (2) |
| Product Status | Obsolete |
| Series | - |
| Technology | Bipolar |
