NTE Electronics, IncUnited States

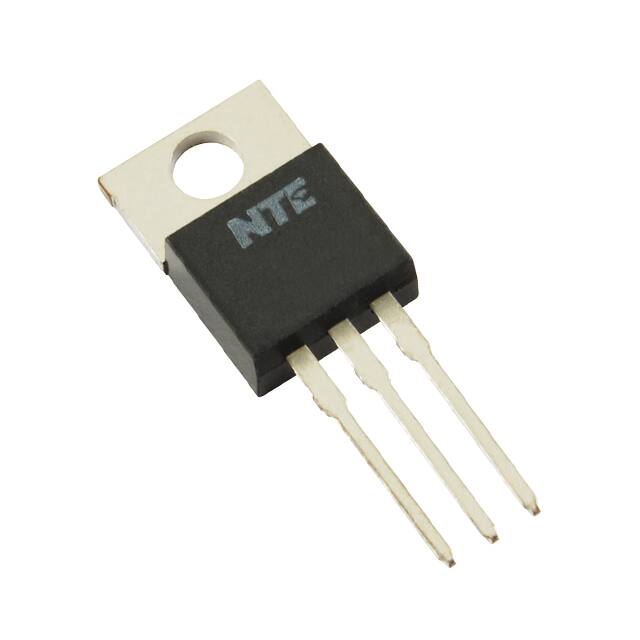

TRANS NPN DARL 60V TO220-3
All alternatives
View full reportTechnical parameters
Key specs
TypeNPN
Collector-emitter voltage60 V
DC current gain10003A
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 500µA |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 3A, 3V |
| Frequency - Transition | 4MHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C~150°C(TJ) |
| Package | Bag |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
| Other | |
| Mfr | NTE Electronics, Inc |
| Product Status | Active |
| Series | - |
| Transistor Type | NPN - Darlington |
| Vce Saturation (Max) @ Ib, Ic | 4V @ 20mA, 5A |
