onsemiUnited States

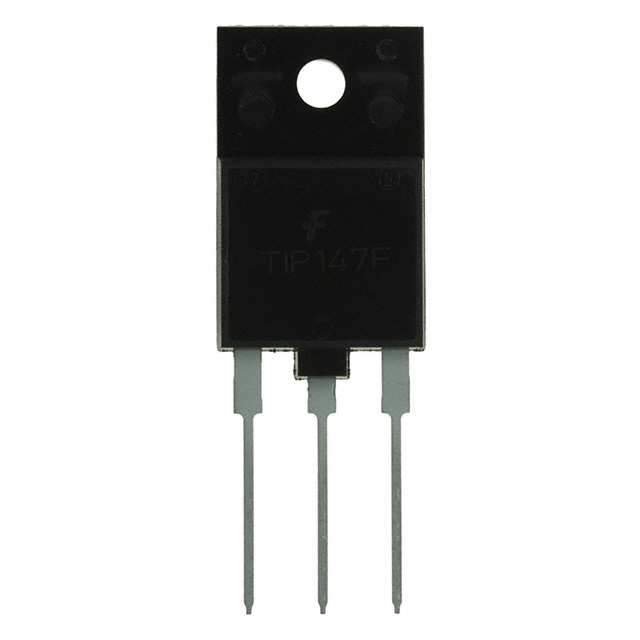

TRANS PNP DARL 100V 10A TO3PF
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage100 V
Collector current10 AMax
DC current gain10005A
Power125 WMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 2mA |
| Current - Collector (Ic) (Max) | 10 A |
| Power - Max | 125 W |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 5A, 4V |
| Frequency - Transition | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C (TJ) |
| Package | Tube |
| Package / Case | TO-3P-3 Full Pack |
| Supplier Device Package | TO-3PF |
| Other | |
| Base Product Number | TIP147 |
| Mfr | onsemi |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | PNP - Darlington |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 40mA, 10A |
Documents
No documents are linked to this part yet.
