Texas InstrumentsUnited States

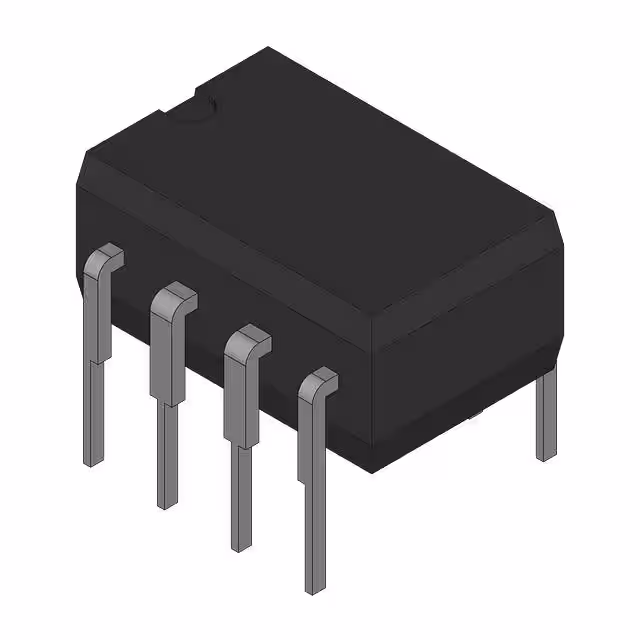

IC OPAMP JFET 2 CIRCUIT 8DIP
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage10 ~ 30 V
Gain bandwidth product1 MHzTyp
Input offset voltage3 mVTyp
Quiescent current200 µATyp
Channels2
| Power | |
|---|---|
| Current - Input Bias | 30 pA |
| Current - Output / Channel | 20 mA |
| Current - Supply | 200µA (x2 Channels) |
| Voltage - Supply Span (Max) | 30 V |
| Voltage - Supply Span (Min) | 10 V |
| AC and DC characteristics | |
| Gain Bandwidth Product | 1 MHz |
| Slew Rate | 3.5V/µs |
| Voltage - Input Offset | 3 mV |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C~70°C(TA) |
| Package | Tube |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Other | |
| Amplifier Type | J-FET |
| Base Product Number | TL062 |
| Mfr | Texas Instruments |
| Number of Circuits | 2 |
| Output Type | - |
| Product Status | Discontinued at Digi-Key |
| Series | - |
Documents
No documents are linked to this part yet.
