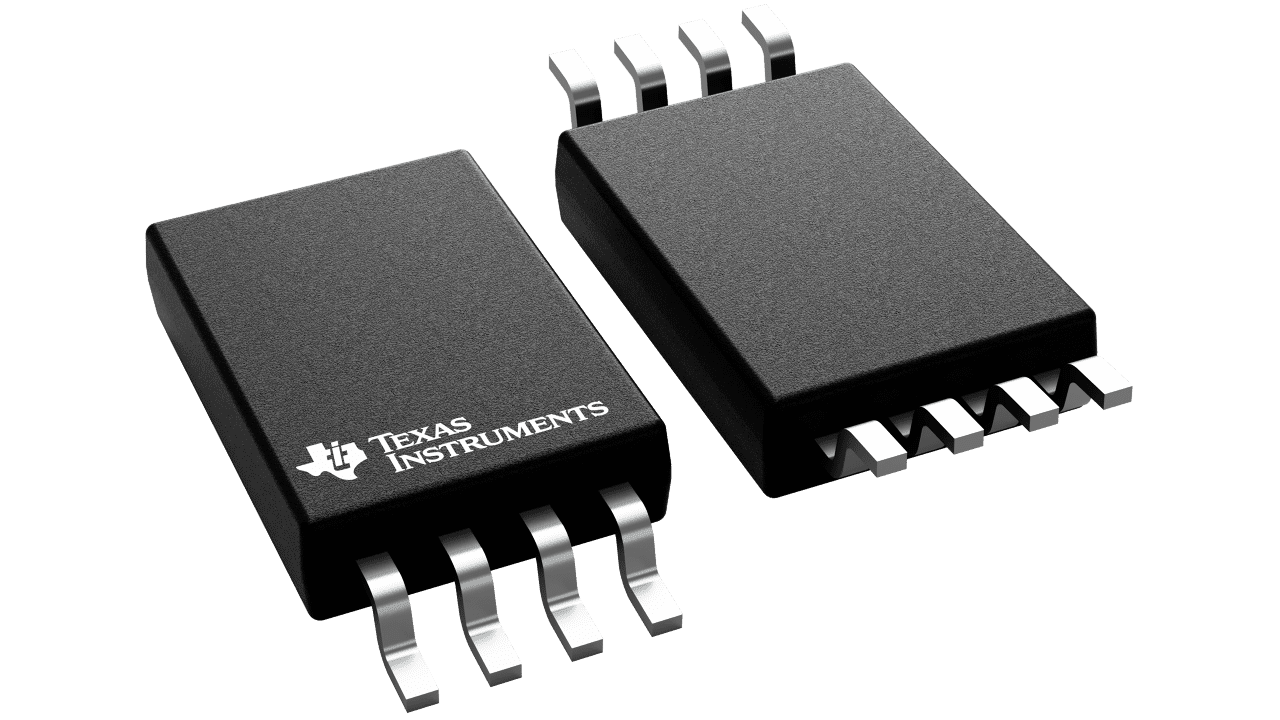

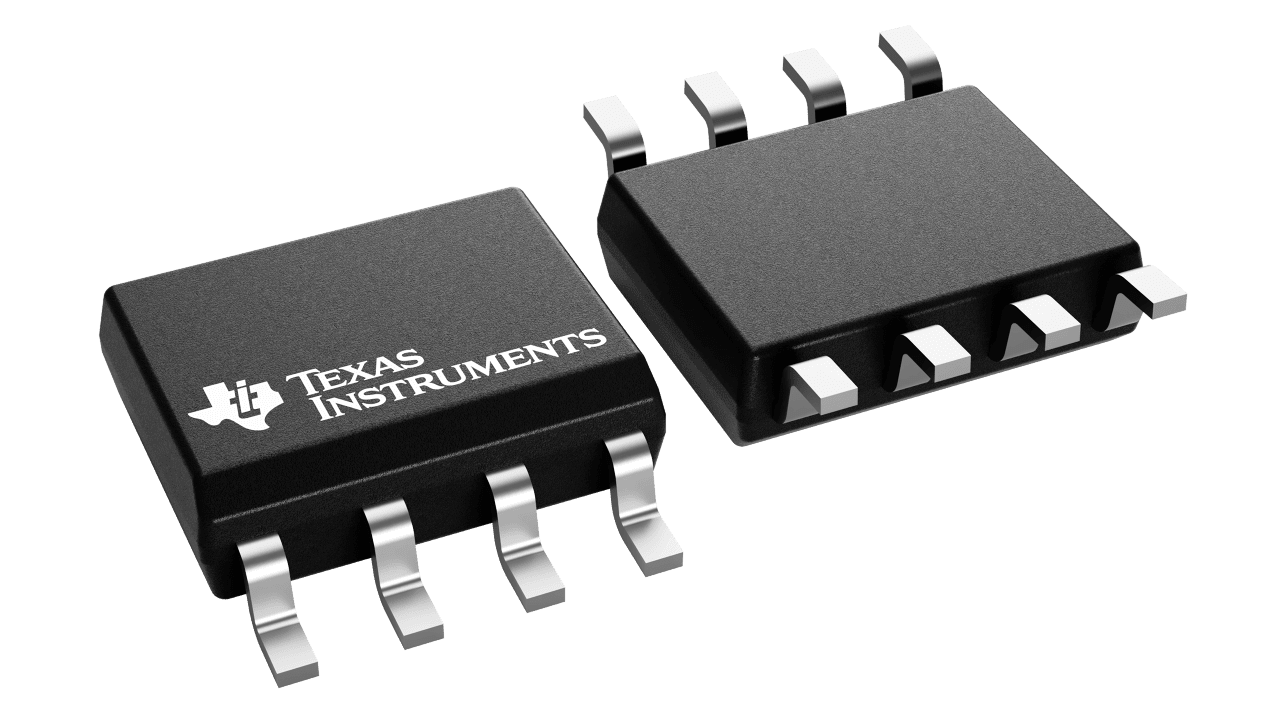

The TL08xH (TL081H, TL082H, and TL084H) family of devices are the next-generation versions of the industry-standard TL08x (TL081, TL082, and TL084) devices. These devices provide outstanding value for cost-sensitive applications, with features including low offset (1mV, typical), high slew rate (20V/µs), and common-mode input to the positive supply. High ESD (1.5kV, HBM), integrated EMI and RF filters, and operation across the full –40°C to 125°C enable the TL08xH devices to be used in the most rugged and demanding applications.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Input bias current (max) (pA) | 120 |
| Input common mode headroom (to negative supply) (typ) (V) | 1.5 |
| Input common mode headroom (to positive supply) (typ) (V) | 0 |
| Iq per channel (typ) (mA) | 0.9375 |
| Number of channels | 2 |
| Output swing headroom (to negative supply) (typ) (V) | 0.105 |
| Output swing headroom (to positive supply) (typ) (V) | 0.115 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 40 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 4.5 |
| AC and DC characteristics | |
| CMRR (typ) (dB) | 105 |
| Offset drift (typ) (µV/°C) | 2 |
| Slew rate (typ) (V/µs) | 20 |
| Vos (offset voltage at 25°C) (max) (mV) | 4 |
| Environment and package | |
| Operating temperature range (°C) | -40 to 125 |
| Other | |
| Architecture | CMOS |
| Features | Cost Optimized, EMI Hardened, Standard Amps |
| GBW (typ) (MHz) | 5.25 |
| Iout (typ) (A) | 0.026 |
| Rail-to-rail | In to V+ |
| Rating | Catalog |
| Vn at 1 kHz (typ) (nV√Hz) | 37 |
