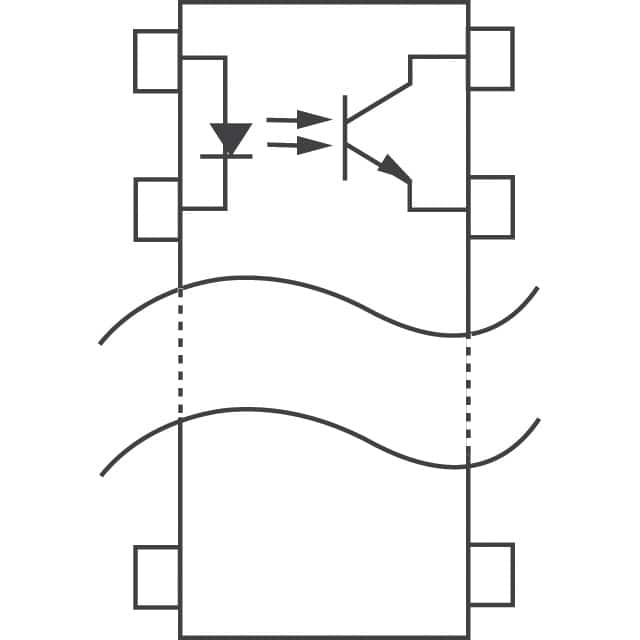

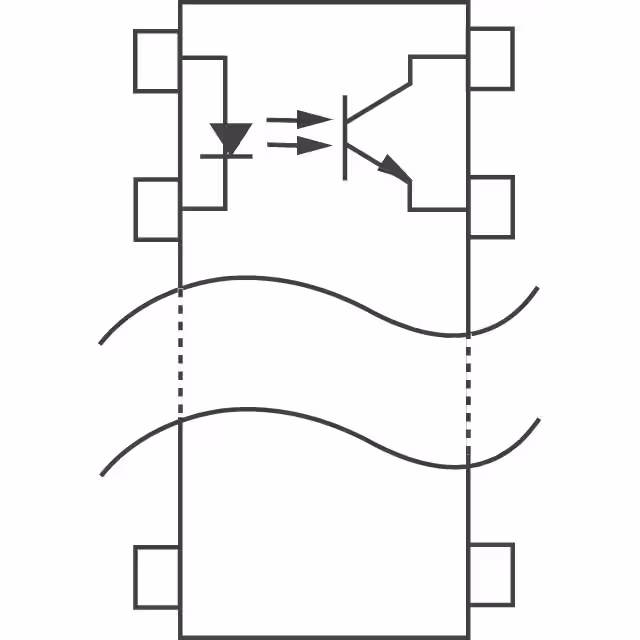

OPTOISOLATOR 5KV 2CH TRANS 8-DIP
All alternatives
View full reportTechnical parameters
Key specs
Channels2
Isolation voltage5 kV
Output typeTransistor
Current transfer ratio100 %1mA
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Current - Output / Channel | 50mA |
| Current Transfer Ratio (Max) | 1200% @ 1mA |
| Current Transfer Ratio (Min) | 100% @ 1mA |
| Number of Channels | 2 |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Voltage - Isolation | 5000Vrms |
| Voltage - Output (Max) | 55V |
| AC and DC characteristics | |
| Rise / Fall Time (Typ) | 8µs, 8µs |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~100°C |
| Package | Tube |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Other | |
| Base Product Number | TLP624 |
| Input Type | DC |
| Mfr | Toshiba Semiconductor and Storage |
| Output Type | Transistor |
| Product Status | Obsolete |
| Series | - |
| Turn On / Turn Off Time (Typ) | 10µs, 8µs |
| Vce Saturation (Max) | 400mV |
