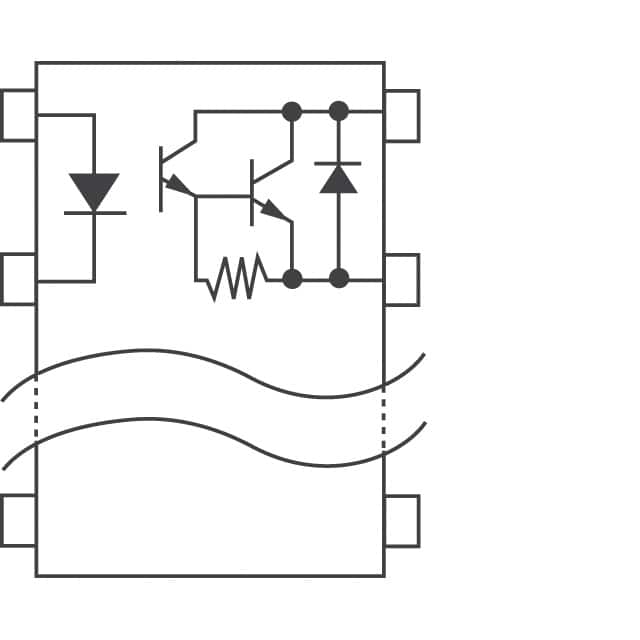

OPTOISOLTR 5KV DARLINGTON 4-SMD
All alternatives
View full reportTechnical parameters
Key specs
Channels1
Isolation voltage5 kV
Output typeDarlington
Current transfer ratio1 k%1mA
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 60 mA |
| Current - Output / Channel | 150mA |
| Current Transfer Ratio (Max) | - |
| Current Transfer Ratio (Min) | 1000% @ 1mA |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Voltage - Isolation | 5000Vrms |
| Voltage - Output (Max) | 300V |
| AC and DC characteristics | |
| Rise / Fall Time (Typ) | 40µs, 15µs |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~100°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SMD |
| Other | |
| Base Product Number | TLP627 |
| Input Type | DC |
| Mfr | Toshiba Semiconductor and Storage |
| Output Type | Darlington |
| Product Status | Obsolete |
| Series | - |
| Turn On / Turn Off Time (Typ) | 50µs, 15µs |
| Vce Saturation (Max) | 1.2V |
