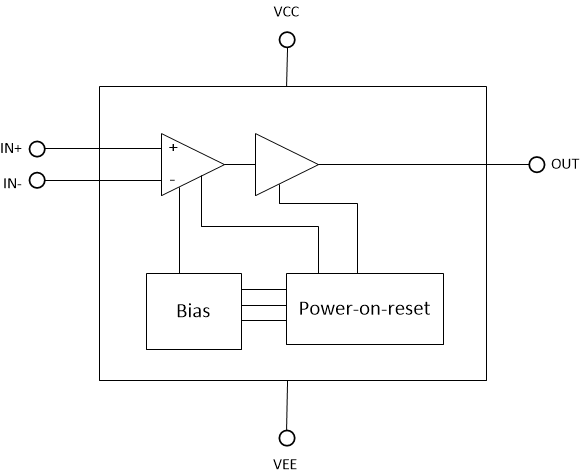

The TLV703x-Q1/TLV704x-Q1 are low-voltage, nanopower comparators with rail-to-rail inputs. These comparators are applicable for space-critical and power conscious designs like infotainment, telematics, and head unit applications. The TLV703x-Q1 and TLV704x-Q1 offer an excellent combination of power and speed. The benefit of fast response time at nanopower enables power-conscious systems to monitor and respond quickly to fault conditions. With an operating voltage range of 1.6 V to 6.5 V, these comparators are compatible with 1.8 V, 3 V, and 5 V systems. The TLV703x-Q1 and TLV704x-Q1 also ensure no output phase inversion with overdriven inputs and internal hysteresis, so engineers can use this family of comparators for precision voltage monitoring in harsh, noisy environments where slow-moving input signals must be converted into clean digital outputs. The TLV703x-Q1 have a push-pull output stage capable of sinking and sourcing milliamps of current. The TLV704x-Q1 have an open-drain output stage that can be pulled beyond V CC .
All alternatives
View full reportTechnical parameters
Key specs
| Power | |
|---|---|
| Input bias current (±) (max) (nA) | 0.002 |
| Iq per channel (typ) (mA) | 0.000315 |
| Number of channels | 2 |
| AC and DC characteristics | |
| Propagation delay time (µs) | 3 |
| Vos (offset voltage at 25°C) (max) (mV) | 8 |
| Environment and package | |
| Operating temperature range (°C) | -40 to 125 |
| Other | |
| Features | Fail-safe, Hysteresis, POR |
| Output type | Push-Pull |
| Rail-to-rail | In |
| Rating | Automotive |
| TI functional safety category | Functional Safety-Capable |
| VICR (max) (V) | 6.6 |
| VICR (min) (V) | 0 |
| Vs (max) (V) | 6.5 |
| Vs (min) (V) | 1.6 |
