Texas InstrumentsUnited States
DUAL NANOPOWER SMALL-SIZE COMPAR
All alternatives
View full reportTechnical parameters
Key specs
Elements2
Output typeOpen drain
Propagation delay3 µsTyp
Supply voltage1.6 ~ 6.5 V
Quiescent current750 nAMax
| Power | |
|---|---|
| Current - Input Bias (Max) | 2pA @ 5V |
| Current - Output (Typ) | 33mA @ 5V |
| Current - Quiescent (Max) | 750nA |
| Voltage - Supply, Single/Dual (±) | 1.6V ~ 6.5V |
| AC and DC characteristics | |
| CMRR, PSRR (Typ) | 73dB CMRR, 77dB PSRR |
| Propagation Delay (Max) | 3µs (Typ) |
| Voltage - Input Offset (Max) | 8mV @ 5V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

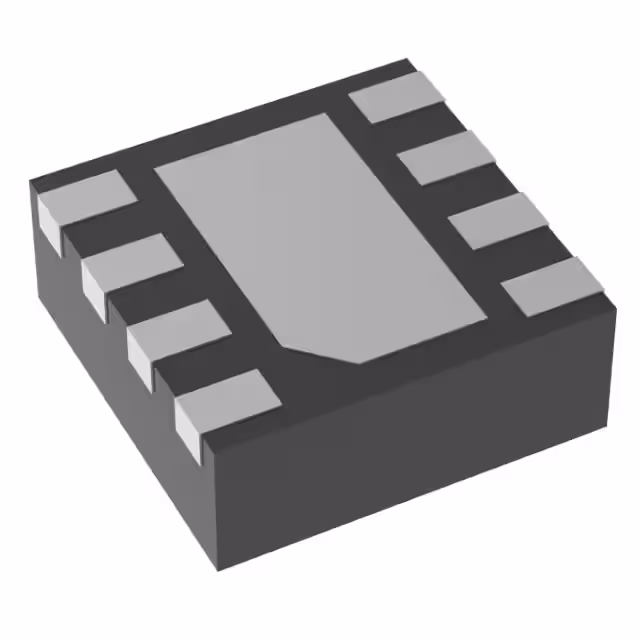

| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-WSON (2x2) |
| Other | |
| Base Product Number | TLV7042 |
| Hysteresis | 25mV |
| Mfr | Texas Instruments |
| Number of Elements | 2 |
| Output Type | Open-Drain, Rail-to-Rail |
| Product Status | Active |
| Series | - |
| Type | General Purpose |
