Texas InstrumentsUnited States

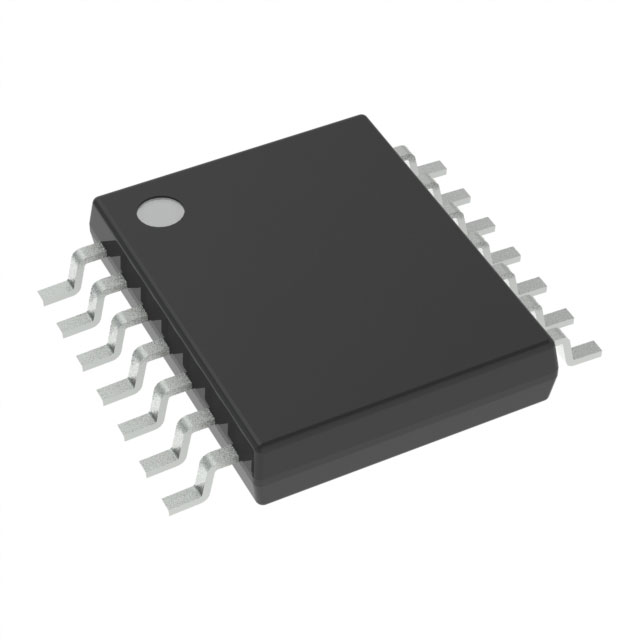

IC COMPARATOR 4 GEN PUR 14TSSOP
All alternatives
View full reportTechnical parameters
Key specs
Elements4
Output typePush-pull
Propagation delay3 µsMax
Supply voltage1.6 ~ 6.5 V
Quiescent current315 nAMax
| Power | |
|---|---|
| Current - Input Bias (Max) | - |
| Current - Output (Typ) | - |
| Current - Quiescent (Max) | 315nA |
| Voltage - Supply, Single/Dual (±) | 1.6V ~ 6.5V |
| AC and DC characteristics | |
| CMRR, PSRR (Typ) | 73dB CMRR, 77dB PSRR |
| Propagation Delay (Max) | 3µs |
| Voltage - Input Offset (Max) | 8mV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Other | |
| Hysteresis | 17mV |
| Mfr | Texas Instruments |
| Number of Elements | 4 |
| Output Type | Rail-to-Rail |
| Product Status | Active |
| Series | - |
| Type | General Purpose |
