Analog Devices Inc.United States

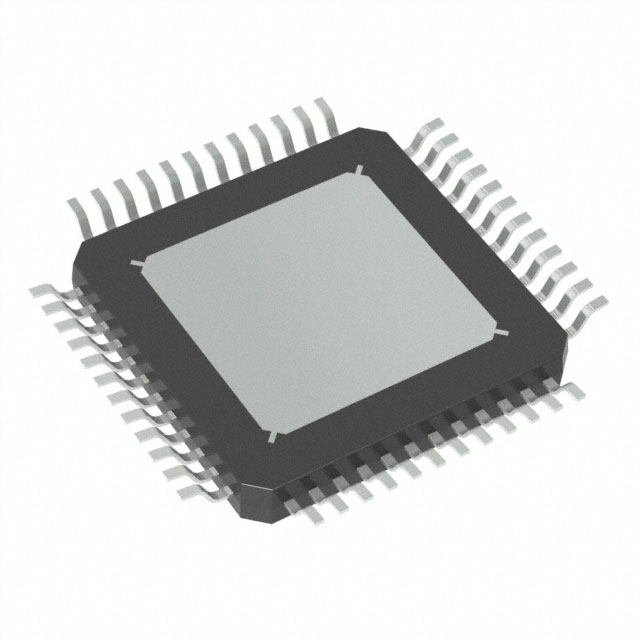

IC MTR DRVR BIPOLAR 8-60V 48TQFP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output | 20A |
| Voltage - Load | 10V ~ 55V |
| Voltage - Supply | 10V ~ 50V |
| AC and DC characteristics | |
| Step Resolution | 1 ~ 1/256 |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package | Tray |
| Package / Case | 48-TQFP Exposed Pad |
| Supplier Device Package | 48-TQFP-EP (7x7) |
| Other | |
| Applications | Industrial |
| Base Product Number | TMC5160 |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | SPI, Step/Direction |
| Mfr | Analog Devices Inc. |
| Motor Type - AC, DC | - |
| Motor Type - Stepper | Bipolar |
| Output Configuration | Half Bridge (4) |
| Product Status | Obsolete |
| Series | - |
| Technology | BCD MOS External Power MOSFETs |
