Power IntegrationsUnited States

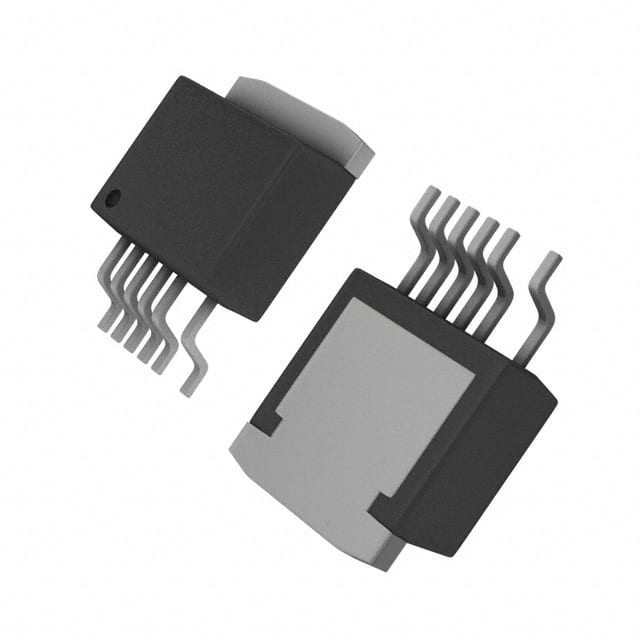

IC OFFLINE SWITCH FLYBACK TO263
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power (Watts) | 45 W |
| Voltage - Breakdown | 700V |
| Voltage - Supply (Vcc/Vdd) | - |
| AC and DC characteristics | |
| Frequency - Switching | 66kHz ~ 132kHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab), TO-263CB |
| Supplier Device Package | TO-263-7C |
| Other | |
| Base Product Number | TOP243 |
| Control Features | Frequency Control |
| Duty Cycle | 66.5% |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Internal Switch(s) | Yes |
| Mfr | Power Integrations |
| Output Isolation | Isolated |
| Product Status | Not For New Designs |
| Series | TOPSwitch®-GX |
| Topology | Flyback |
