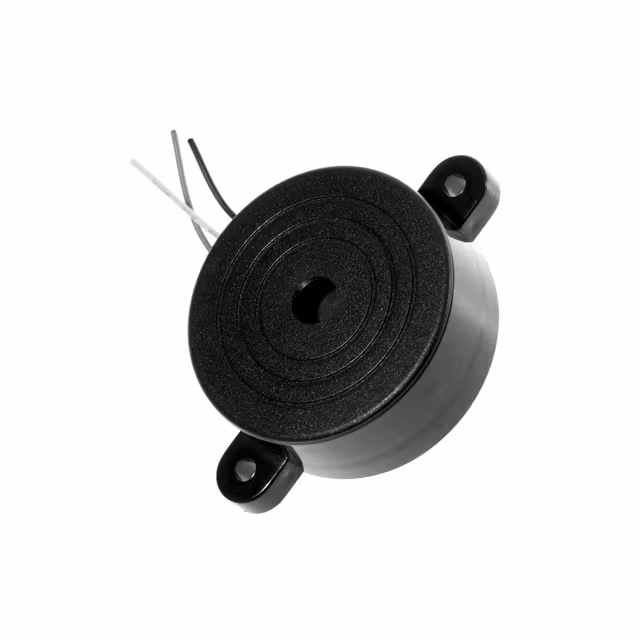

BUZZER PIEZO 12V 41.8MM FLANGE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Supply | 8mA |
| Voltage Range | 3 ~ 24V |
| Voltage - Rated | 12 V |
| AC and DC characteristics | |
| Frequency | 2.8kHz |
| Environment and package | |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Mounting Type | Panel Mount, Flange |
| Operating Temperature | -20°C~60°C |
| Package | Tray |
| Size / Dimension | 1.646" Dia (41.80mm) |
| Other | |
| Approval Agency | - |
| Driver Circuitry | Transducer, Externally Driven |
| Duration | - |
| Ingress Protection | - |
| Input Type | Peak-Peak Signal |
| Mfr | DB Unlimited |
| Operating Mode | - |
| Port Location | Top |
| Product Status | Active |
| Ratings | - |
| Series | - |
| Technology | Piezo |
| Termination | Wire Leads |
