TransphormUnited States

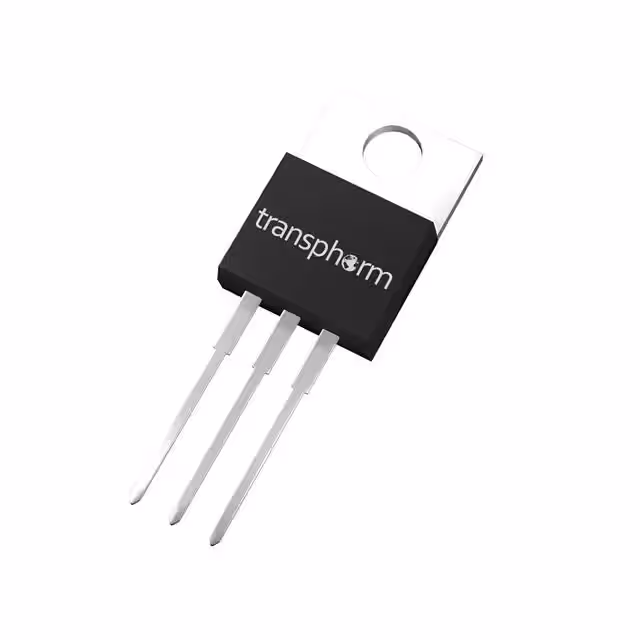

GANFET N-CH 600V 17A TO220AB
All alternatives
View full reportTechnical parameters
Key specs
ChannelN-channel
Drain-source voltage600 V
Continuous drain current17 A
On-resistance180 mΩMax · 11A
Gate threshold voltage2.6 VMax · 500μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 17A (Tc) |
| Drain to Source Voltage (Vdss) | 600 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Power Dissipation (Max) | 96W (Tc) |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~175°C(TJ) |
| Package | Tube |

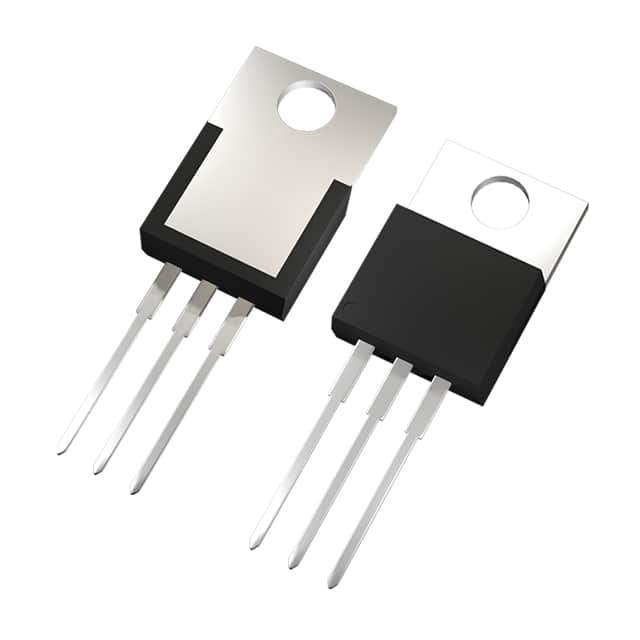

| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220AB |
| Other | |
| Base Product Number | TPH3206 |
| FET Feature | - |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 9.3 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 760 pF @ 480 V |
| Mfr | Transphorm |
| Product Status | Not For New Designs |
| Rds On (Max) @ Id, Vgs | 180mOhm @ 11A, 8V |
| Series | - |
| Technology | GaNFET (Gallium Nitride) |
| Vgs (Max) | ±18V |
| Vgs(th) (Max) @ Id | 2.6V @ 500µA |
