Texas InstrumentsUnited States
IC REG BCK BST ADJ 2A 10WSON
All alternatives
View full reportTechnical parameters
Key specs
Input voltage2.5 ~ 12 V
Output voltage2.5 ~ 8 V
Output current2 AMax
Switching frequency2.4 MHz
| Power | |
|---|---|
| Current - Output | 2A (Switch) |
| Voltage - Input (Max) | 12V |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Max) | 8V |
| Voltage - Output (Min/Fixed) | 2.5V |
| AC and DC characteristics | |
| Frequency - Switching | 2.4MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

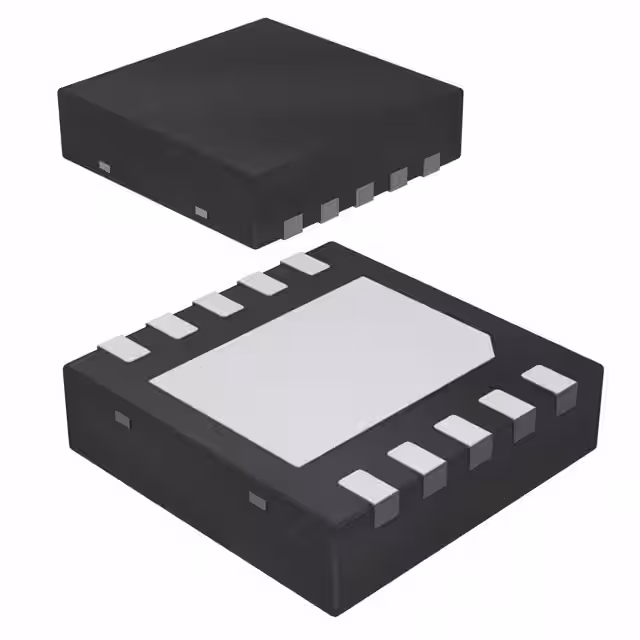

| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-WSON (3x3) |
| Other | |
| Base Product Number | TPS63060 |
| Function | Step-Up/Step-Down |
| Mfr | Texas Instruments |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Product Status | Active |
| Series | - |
| Synchronous Rectifier | Yes |
| Topology | Buck-Boost |
