Texas InstrumentsUnited States

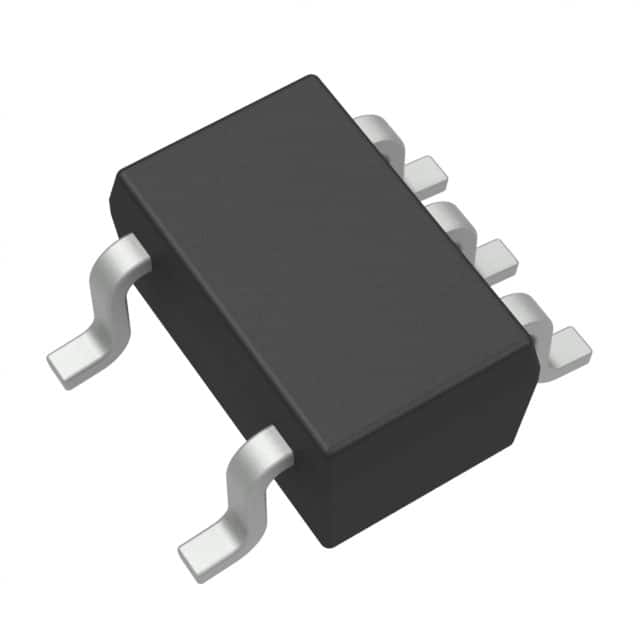

IC REG LIN POS ADJ 50MA SC70-5
All alternatives
View full reportTechnical parameters
Key specs
Output voltage1.2 ~ 15 V
Output current50 mAMax
Input voltage≤ 24 V
Dropout voltage750 mVMax · 50mA
Quiescent current4.2 µATyp
| Power | |
|---|---|
| Current - Output | 50mA |
| Current - Quiescent (Iq) | 4.2 µA |
| Voltage Dropout (Max) | 0.75V @ 50mA |
| Voltage - Input (Max) | 24V |
| Voltage - Output (Max) | 15V |
| Voltage - Output (Min/Fixed) | 1.2V |
| AC and DC characteristics | |
| PSRR | 60dB (100kHz) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| Other | |
| Base Product Number | TPS71501 |
| Control Features | - |
| Mfr | Texas Instruments |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Product Status | Discontinued at Digi-Key |
| Protection Features | Over Current |
| Series | - |
Documents
No documents are linked to this part yet.
