TPS7A4901DGN

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators8-Pin HVSSOP PowerPAD

LDO REGULATOR ADJ 36V 150MA 8HVSSOP

TPS7A4901DGN is a 36V input, 150mA output ultralow-noise linear regulator in an 8-pin HVSSOP PowerPAD package, operating from -40°C to 125°C with enable pin and thermal protection.Checked against the datasheet

See alternatives Ask AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Output voltage1.194 ~ 33 V

Output current150 mAMax

Input voltage3 ~ 35 V

Dropout voltage260 mVMax

Datasheet-verified parameters

23 items

Parameter	Value and test conditions	Source
Output voltage	1.194 V to 33 V (Adjustable)
Output current	150 mA
Input voltage range	3 V to 35 V (Recommended), 36 V (Absolute Max)
Dropout voltage	260 mV (Typ) at IOUT=100mA, VIN=95% VOUT(nom); 333 mV (Typ) at IOUT=150mA
Ground current	49 μA (Typ) at IOUT=0mA; 100 μA (Max) at IOUT=0mA
Package	8-Pin HVSSOP PowerPAD (DGN), 3.00 mm × 3.00 mm
Operating temperature	-40°C to 125°C
RoHS	Yes
Output noise voltage	15.4 μVRMS (Typ) at VIN=3V, VOUT(nom)=VREF, BW=10Hz to 100kHz
Power-supply rejection ratio	72 dB (Typ) at f=120Hz
Line regulation	0.086 %VOUT (Typ) at TJ=25°C
Load regulation	0.04 %VOUT (Typ) at TJ=25°C
Current limit	309 mA (Typ), 220 mA (Min), 500 mA (Max) at VOUT=90% VOUT(nom)
Thermal shutdown temperature	170°C (Typ) Shutdown, 150°C (Typ) Reset
Enable high-level voltage	2.1 V (Typ)
Enable low-level voltage	0.4 V (Max)
Shutdown supply current	0.8 μA (Typ), 3 μA (Max) at VEN=0.4V
Input capacitor	2.2 μF (Min), 10 μF (Nom)
Output capacitor	2.2 μF (Min), 10 μF (Nom)
Junction-to-ambient thermal resistance	63.4 °C/W
Electrostatic discharge (HBM)	±1500 V
Electrostatic discharge (CDM)	±500 V
Storage temperature	-65°C to 150°C

All parameters (8)ExpandCollapse

Power
Dropout Voltage	260 mV at 100 mA
Input Voltage Range	3 V to 36 V
Output Current	150 mA
AC and DC characteristics
Noise	15.4 μV RMS (10 Hz to 100 kHz)
Power-Supply Ripple Rejection	– 72 dB (120 Hz)
Environment and package
Operating Temperature Range	–40°C to 125°C
Package	8-Pin HVSSOP PowerPAD
Other
Adjustable Output	1.194 V to 33 V

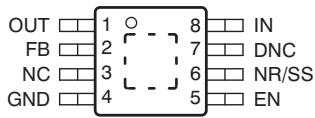

Pinout and package

Pin	Name	Function	Source
1		OUT, Regulator output. A capacitor ≥ 2.2 μF must be tied from this pin to ground to ensure stability.
2		FB, Input to the error amplifier. FB is used to set the output voltage of the device.
3		NC, Not internally connected. This pin can either be left open or tied to GND.
4		GND, Ground
5		EN, This pin turns the regulator on or off. If VEN ≥ VEN(high), the regulator is enabled. If VEN ≤ VEN(low), the regulator is disabled.
6		NR/SS, Noise-reduction pin. Connecting an external capacitor to this pin bypasses noise generated by the internal band gap. This capacitor allows RMS noise to be reduced to very low levels and also controls the soft-start function.
7		DNC, Do not connect. Do not route this pin to any electrical net, not even GND or IN.
8		IN, Input supply
PowerPAD		PowerPAD, Must either be left open or tied to ground. Solder to the printed-circuit-board (PCB) plane to enhance thermal performance.
