DC DC CONVERTER 0.8-3.6V
All alternatives
View full reportTechnical parameters
Key specs
Input voltage2.95 ~ 6 V
Output voltage800 mV ~ 3.6 V
Output current4 AMax
IsolationNon-isolated
| Power | |
|---|---|
| Current - Output (Max) | 4A |
| Voltage - Input (Max) | 6V |
| Voltage - Input (Min) | 2.95V |
| Voltage - Output 1 | 0.8 ~ 3.6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

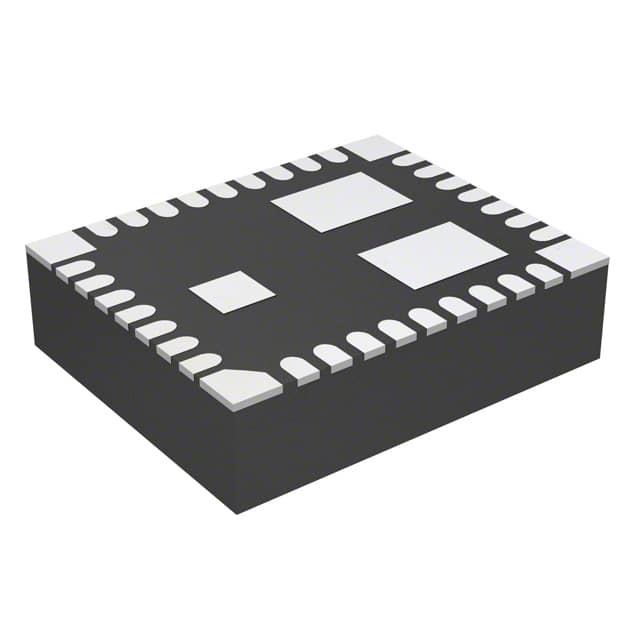

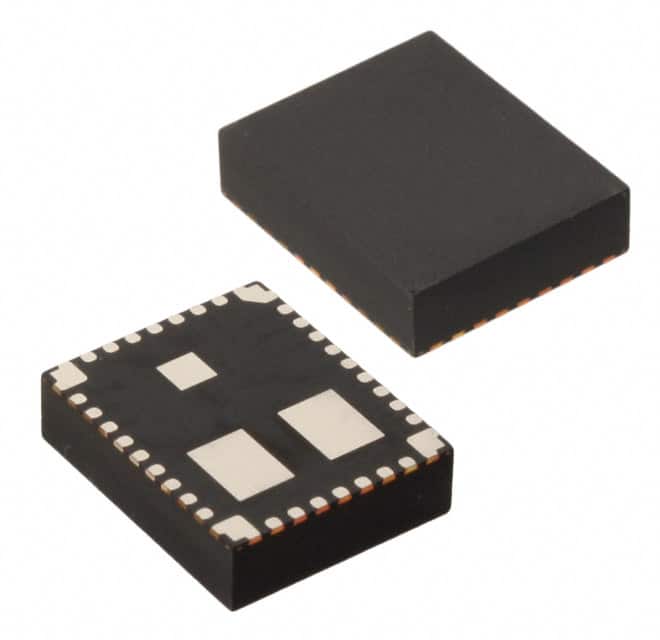

| Package / Case | 39-BQFN Exposed Pad |
| Size / Dimension | 0.43" L x 0.35" W x 0.11" H (11.0mm x 9.0mm x 2.8mm) |
| Supplier Device Package | 39-B1QFN (11x9) |
| Other | |
| Applications | ITE (Commercial) |
| Base Product Number | TPS84410 |
| Control Features | Enable, Active High |
| Efficiency | 96% |
| Features | UVLO |
| Mfr | Texas Instruments |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | - |
| Type | Non-Isolated PoL Module |
