Taiwan Semiconductor CorporationTaiwan, China

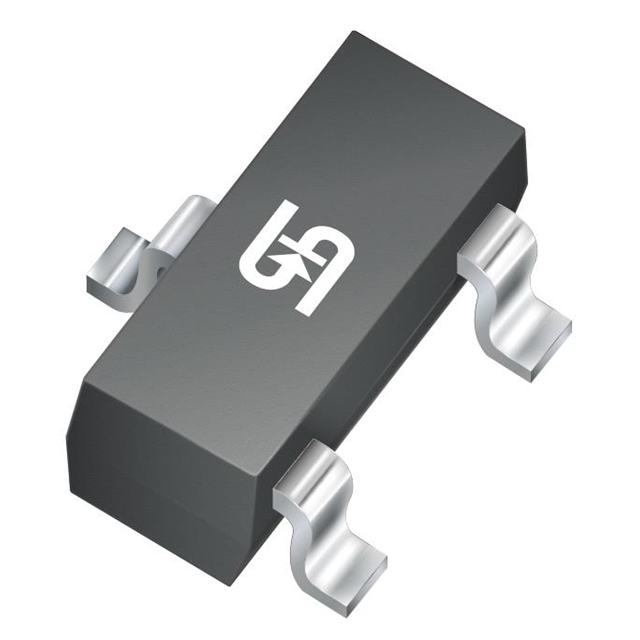

IC SUPERVISOR 1 CHANNEL SOT23
All alternatives
View full reportTechnical parameters
Key specs
Voltages monitored1
Threshold voltage4 V
Reset timeout140 ms
OutputPush-pull
| Power | |
|---|---|
| Number of Voltages Monitored | 1 |
| Voltage - Threshold | 4V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| Other | |
| Base Product Number | TS3809 |
| DigiKey Programmable | Not Verified |
| Mfr | Taiwan Semiconductor Corporation |
| Output | Push-Pull, Totem Pole |
| Product Status | Obsolete |
| Reset | Active Low |
| Reset Timeout | 140ms Minimum |
| Series | - |
| Type | Simple Reset/Power-On Reset |
Documents
No documents are linked to this part yet.
