STMicroelectronicsSwitzerland
RAIL-TO-RAIL 0.9V NANOPOWER, OPE
All alternatives
View full reportTechnical parameters
Key specs
Elements2
Output typeOpen drain
Propagation delay23 µsMax
Supply voltage900 mV ~ 5.5 V
Quiescent current430 nAMax
| Power | |
|---|---|
| Current - Input Bias (Max) | 20pA @ 5V |
| Current - Output (Typ) | 50mA @ 5V |
| Current - Quiescent (Max) | 430nA |
| Voltage - Supply, Single/Dual (±) | 0.9V ~ 5.5V |
| AC and DC characteristics | |
| CMRR, PSRR (Typ) | 78dB CMRR, 80dB PSRR |
| Propagation Delay (Max) | 23µs |
| Voltage - Input Offset (Max) | 5mV @ 5V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

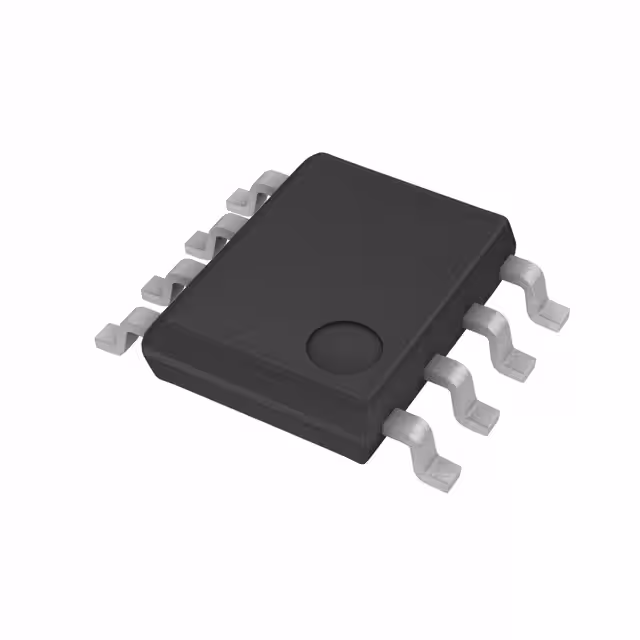

| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MiniSO |
| Other | |
| Base Product Number | TS883 |
| Hysteresis | 3.1mV |
| Mfr | STMicroelectronics |
| Number of Elements | 2 |
| Output Type | Open-Drain, Rail-to-Rail |
| Product Status | Active |
| Series | - |
| Type | General Purpose |
