NXP USA Inc.Netherlands

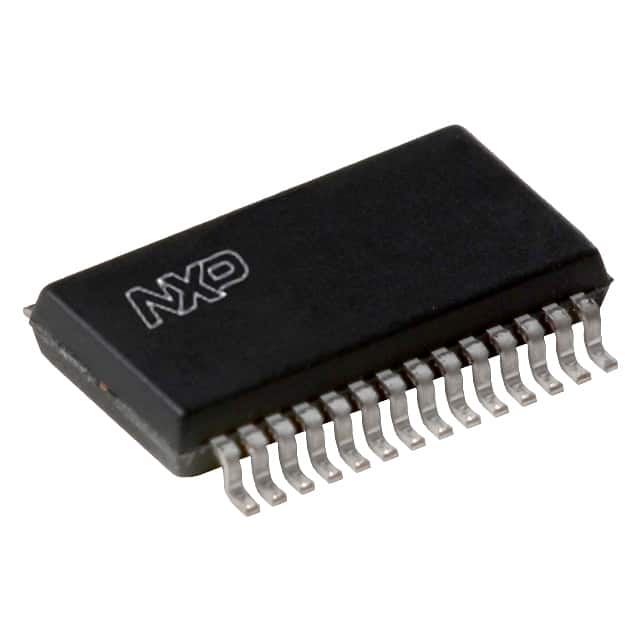

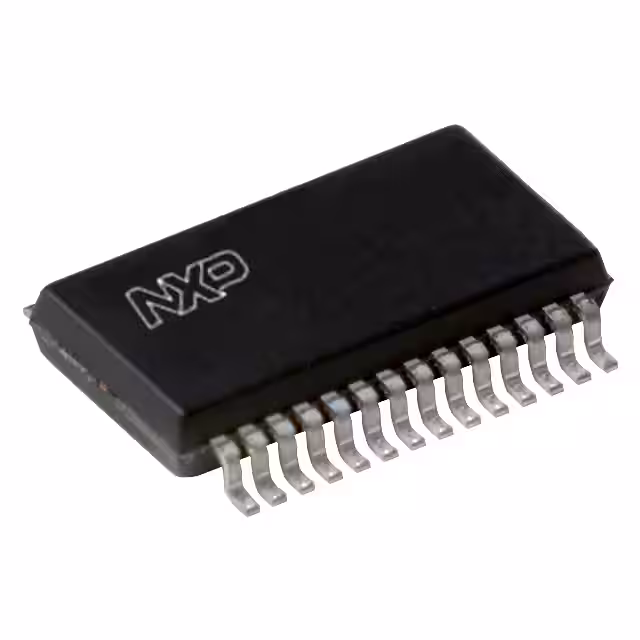

IC GATE DRVR HALF-BRIDGE 28SSOP
All alternatives
View full reportTechnical parameters
Key specs
Drivers4
Driven configurationHalf-bridge
Peak output current200 mAMax
Supply voltage10.5 ~ 13.5 V
| Power | |
|---|---|
| Channel Type | Synchronous |
| Current - Peak Output (Source, Sink) | 180mA, 200mA |
| High Side Voltage - Max (Bootstrap) | 550 V |
| Logic Voltage - VIL, VIH | 2V, 4V; 3V, 6V |
| Voltage - Supply | 10.5V ~ 13.5V |
| AC and DC characteristics | |
| Rise / Fall Time (Typ) | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| Other | |
| Base Product Number | UBA203 |
| Driven Configuration | Half-Bridge |
| Gate Type | N-Channel MOSFET |
| Input Type | RC Input Circuit |
| Mfr | NXP USA Inc. |
| Number of Drivers | 4 |
| Product Status | Obsolete |
| Series | - |
