View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output | - |
| Voltage - Load | - |
| Voltage - Supply | 10V ~ 36V |
| AC and DC characteristics | |
| Step Resolution | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |

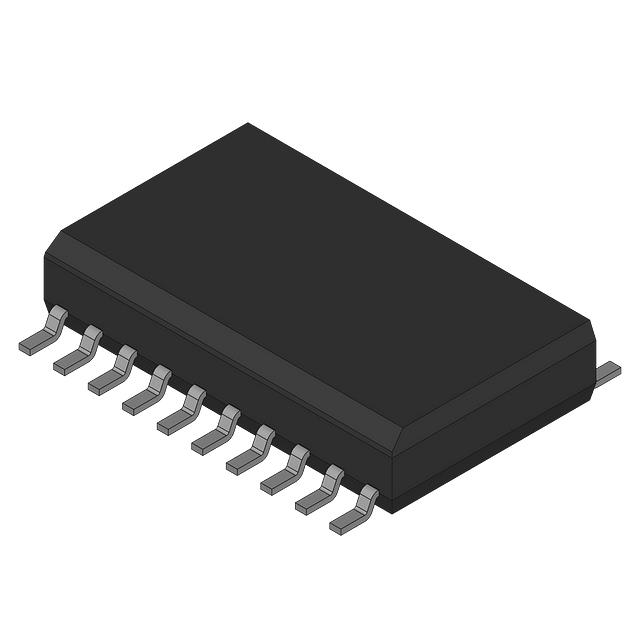

| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Other | |
| Applications | General Purpose |
| Base Product Number | UC3638 |
| Function | Controller - Commutation, Direction Management |
| Interface | Parallel |
| Manufacturer | Unitrode |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | - |
| Output Configuration | Pre-Driver - Half Bridge (2) |
| Packaging | Bulk |
| Part Status | Active |
| Series | - |
| Technology | - |
