Texas InstrumentsUnited States
PWR MGMT MOSFET/PWR DRIVER
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output High, Low | 4A, 6A |
| Current - Peak Output | 4A, 6A |
| Number of Channels | 2 |
| Voltage - Forward (Vf) (Typ) | - |
| Voltage - Isolation | 5700Vrms |
| Voltage - Output Supply | 9.2V ~ 18V |
| AC and DC characteristics | |
| Propagation Delay tpLH / tpHL (Max) | 40ns, 40ns |
| Pulse Width Distortion (Max) | 5.5ns |
| Rise / Fall Time (Typ) | 5ns, 6ns |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tube |

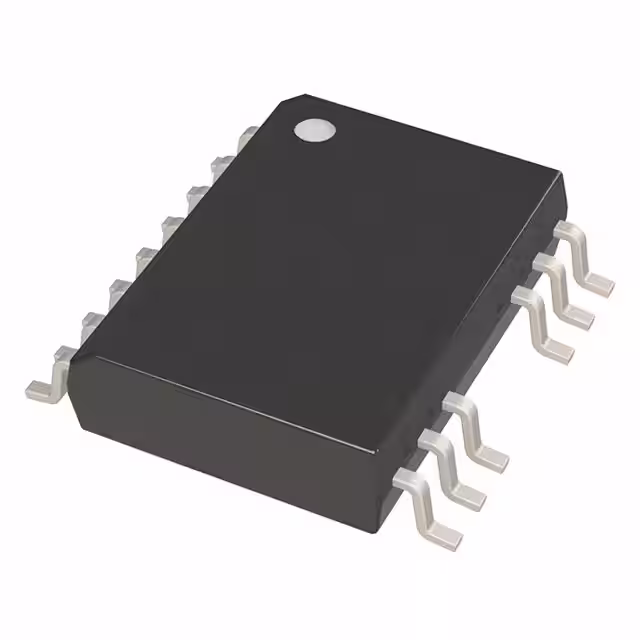

| Package / Case | 14-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 14-SOIC |
| Other | |
| Approval Agency | CQC, UL, VDE |
| Base Product Number | UCC21540 |
| Common Mode Transient Immunity (Min) | 100V/ns |
| Mfr | Texas Instruments |
| Product Status | Active |
| Series | - |
| Technology | Capacitive Coupling |
