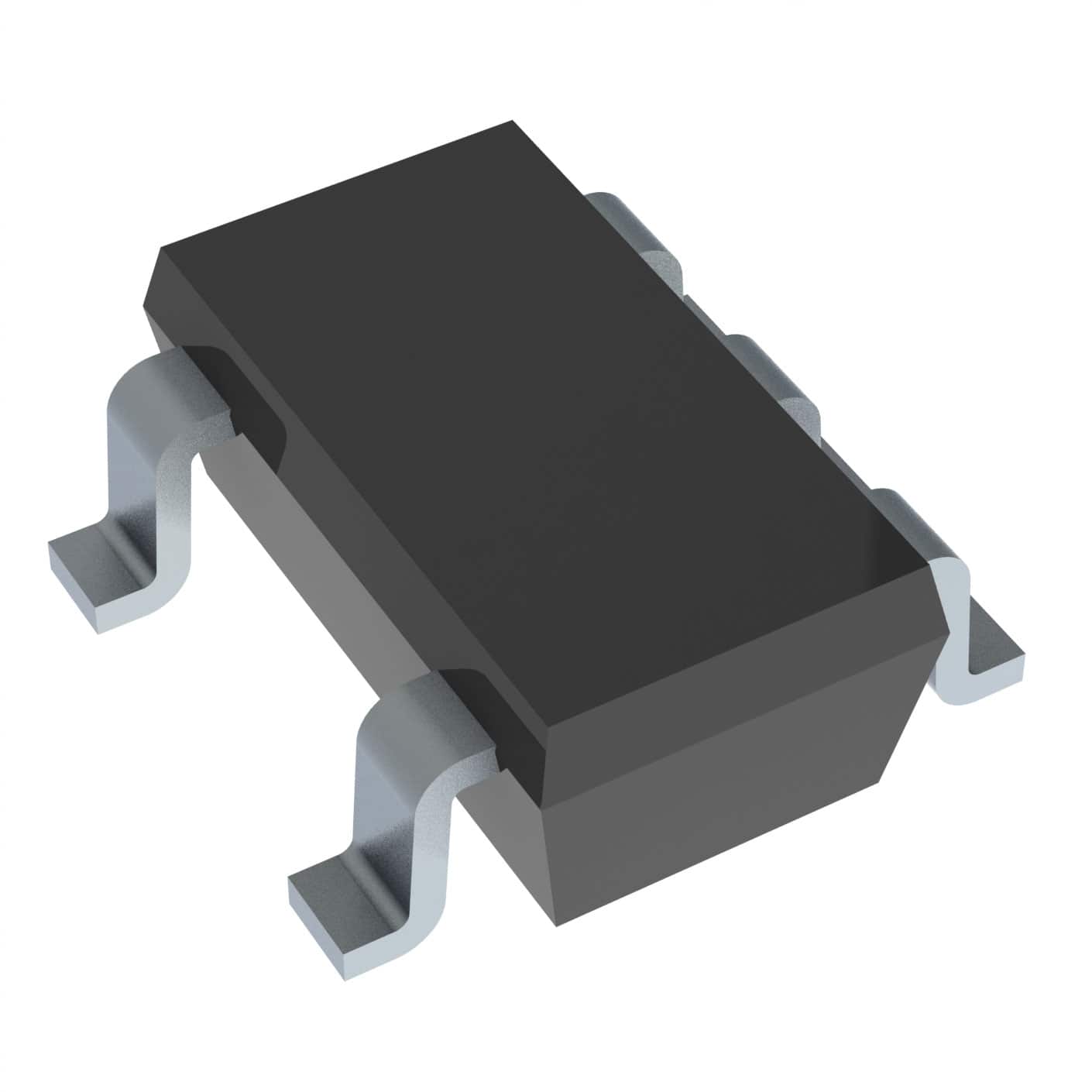

IC GATE DRVR LOW-SIDE SOT23-5
All alternatives
View full reportTechnical parameters
Key specs
Drivers1
Driven configurationLow-side
Peak output current4 AMax
Supply voltage4.5 ~ 18 V
| Power | |
|---|---|
| Channel Type | Single |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Logic Voltage - VIL, VIH | 1V, 2.4V |
| Voltage - Supply | 4.5V ~ 18V |
| AC and DC characteristics | |
| Rise / Fall Time (Typ) | 8ns, 7ns |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~140°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Other | |
| Base Product Number | UCC27517 |
| Driven Configuration | Low-Side |
| Gate Type | IGBT, N-Channel MOSFET |
| Input Type | Inverting, Non-Inverting |
| Mfr | Texas Instruments |
| Number of Drivers | 1 |
| Product Status | Active |
| Series | - |
