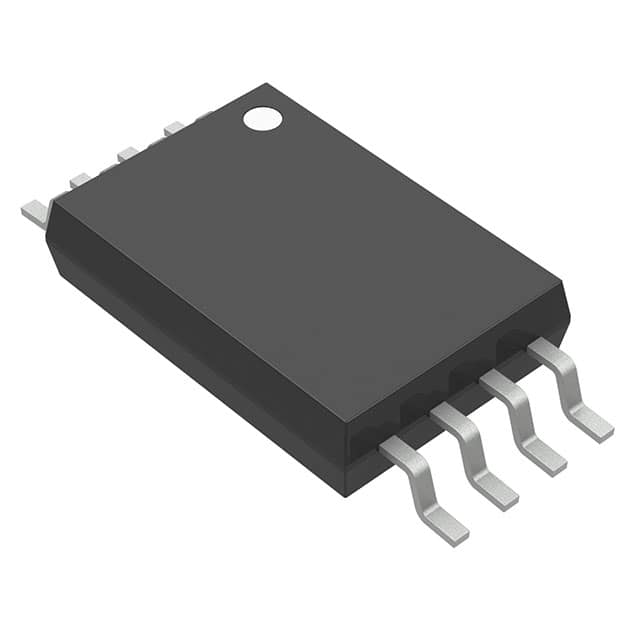

IC REG CTRLR MULT TOP 8TSSOP
All alternatives
View full reportTechnical parameters
Key specs
TopologyHalf-bridge
Outputs2
Input voltage4.1 ~ 15 V
Switching frequency200 kHz
| Power | |
|---|---|
| Voltage - Supply (Vcc/Vdd) | 4.1V ~ 15V |
| AC and DC characteristics | |
| Frequency - Switching | 200kHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tube |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 8-TSSOP |
| Other | |
| Base Product Number | UCC28084 |
| Clock Sync | No |
| Control Features | Current Limit, Frequency Control |
| Duty Cycle (Max) | 49% |
| Function | Step-Up/Step-Down |
| Mfr | Texas Instruments |
| Number of Outputs | 2 |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Product Status | Active |
| Serial Interfaces | - |
| Series | - |
| Synchronous Rectifier | Yes |
| Topology | Half-Bridge, Push-Pull |
