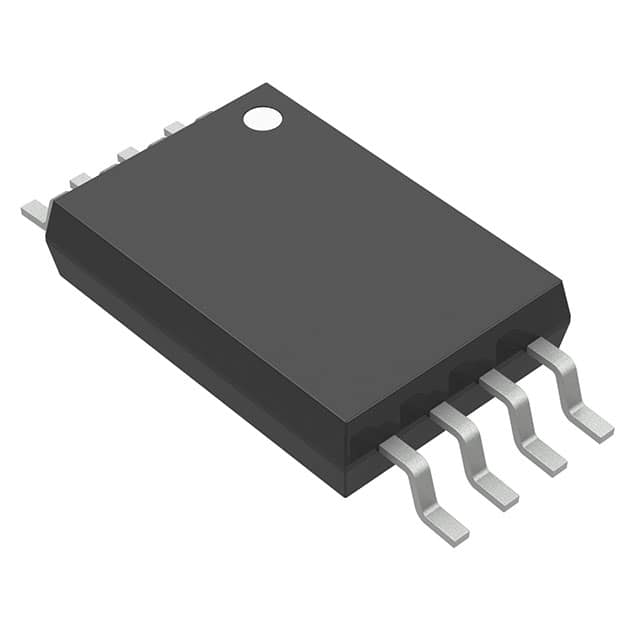

IC OFFLINE SW PUSH-PULL 8TSSOP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Breakdown | - |
| Voltage - Start Up | 12.5 V |
| Voltage - Supply (Vcc/Vdd) | 8.3V ~ 15V |
| AC and DC characteristics | |
| Frequency - Switching | 50kHz ~ 1MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tape & Reel (TR) |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 8-TSSOP |
| Other | |
| Base Product Number | UCC28085 |
| Control Features | Frequency Control |
| Duty Cycle | 49% |
| Fault Protection | Current Limiting |
| Internal Switch(s) | No |
| Mfr | Texas Instruments |
| Output Isolation | Isolated |
| Product Status | Obsolete |
| Series | - |
| Topology | Push-Pull |
