Texas InstrumentsUnited States

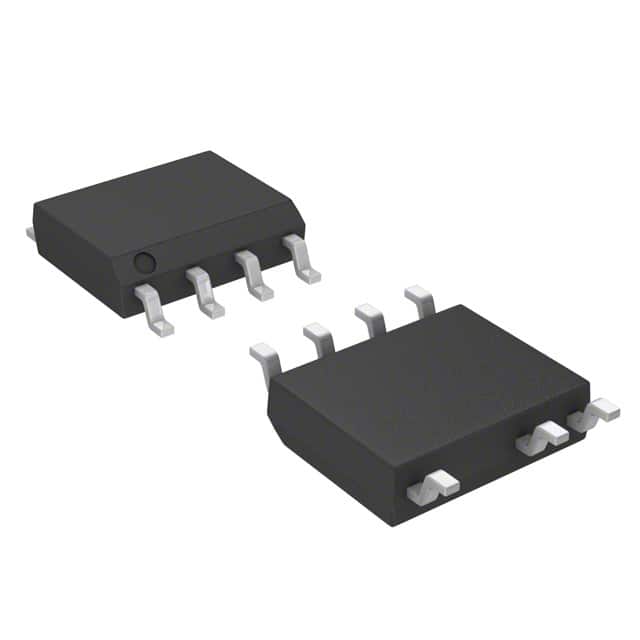

IC OFFLINE SWITCH FLYBACK 7SOIC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power (Watts) | 30 W |
| Voltage - Breakdown | - |
| Voltage - Start Up | 14.75 V |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 20V |
| AC and DC characteristics | |
| Frequency - Switching | 200Hz ~ 120kHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C(TJ) |
| Package | Tube |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 7-SOIC |
| Other | |
| Base Product Number | UCC28633 |
| Control Features | - |
| Duty Cycle | 70% |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Internal Switch(s) | No |
| Mfr | Texas Instruments |
| Output Isolation | Isolated |
| Product Status | Active |
| Series | - |
| Topology | Flyback |
