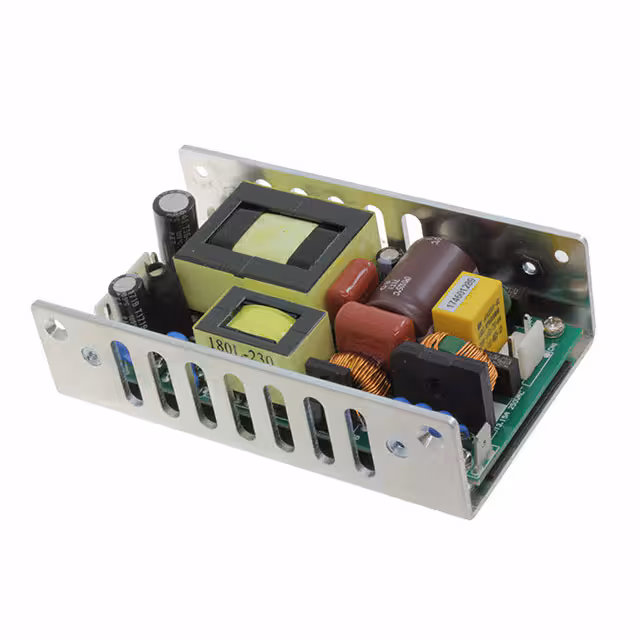

AC/DC CONVERTER 24V 120W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage85 ~ 264 V
Output voltage24 V
Output current5 AMax
Power120 WMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 5 A |
| Power (Watts) | 120W (180W Forced Air) |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Isolation | 4 kV |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C~70°C(WithDerating) |
| Package | Box |
| Size / Dimension | 4.24" L x 2.47" W x 1.16" H (107.7mm x 62.7mm x 29.5mm) |
| Other | |
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, TUV, UL |
| Base Product Number | UCP180 |
| Efficiency | 92% |
| Features | PFC, Universal Input |
| Mfr | XP Power |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | UCP180 (180W) |
| Standard Number | 62368-1 |
| Type | Open Frame |
